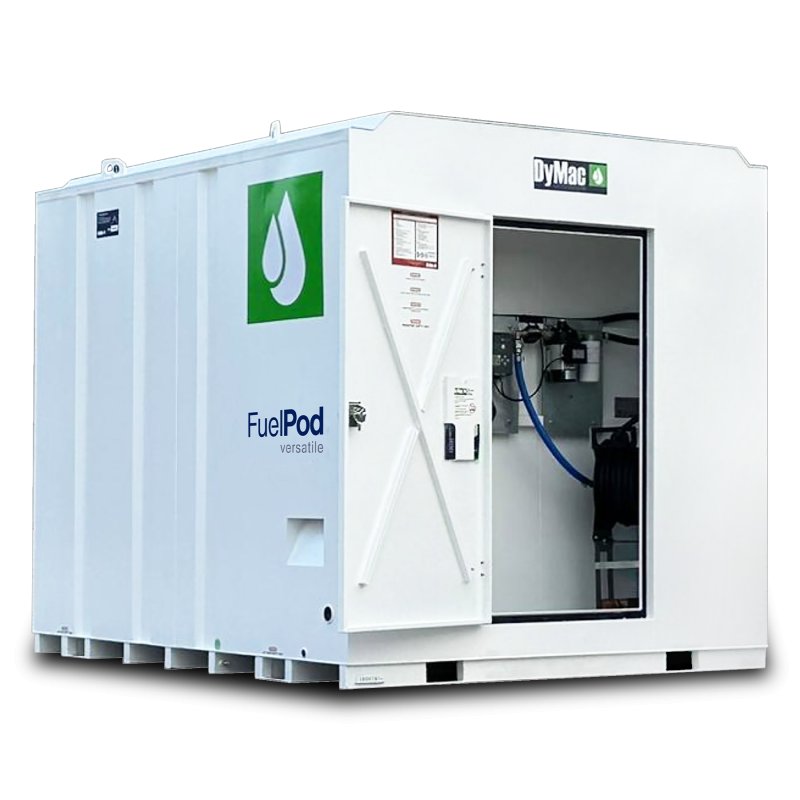

11000L FUELPOD VERSATILE

10400L FUELPOD VERSATILE

The FuelPod Versatile Range of steel bunded storage tanks is designed for stationary use on medium to large scale refuelling applications. The range features forklift access pockets and overhead lifting eyes to allow for smooth and accurate positioning on site.This comprehensive range is equipped with a spacious walk-in compartment for ease of access when filling, dispensing fuel or carrying out maintenance. The DyMac Fuel Pod Range comes fitted with internal shelving units and is constructed with a flow forge floor for effective spillage control.

The FuelPod is the go to fuelling solution across the construction, industrial and farming sectors. The pod can be used for any number of direct fuelling applications, including providing bulk fuel supply to farm machinery, construction equipment or critical power generators worldwide. The FuelPods innovative and flexible design allows for quick refuelling and deployment, making it perfect for an emergency situation. The FuelPod Range can be engaged as a secondary or standby bulk fuel source for farms, building sites and quarries as fuel can be securely stored in the FuelPod until required.

Suitable For:

• Equipment Rental
• Diesel Generator Power
• Municipalities
• Construction
• Fuel Distribution
• Mining
• Military Orgaisations

Specification

• Capacity - 10400 Litres
• Cabinet Height - 688mm
• Weight Empty - 3282 kg
• 3” Fill Line, Connected to Downpipe With 3" Non-Return Valve & 3"Overfill Protection Valve C/W 3" Flanged Ball-Valve Flanged to a 2" Male BSP Externally Threaded Coupling Closed With A Dust Cap
• 2x 1/2 " Feed BSP-M C/W Downpipe, NRV & Filter
• 1 X 1.1/2” Pump Feed
• 2x 3/8" Return BSP-M
• 1 X 2” Overfill Protection With 90 Deg Elbow (BSP M To F) & 2" Plug
• 1 X 1” Pump Feed
• 2 X 1” Drain
• 1 X 2" Socket Free Vent
• 1 X 2" Cable Entry Port
• 1 X 4” Emergency Vent Port
• 1 X 2" Socket C/W Downpipe And NRV
• 1 X 2" Socket-Gauge C/W Downpipe and NRV
• 1 X 2” Socket - Interstitial Gauge C/W Downpipe and NRV
• 1 X 500mm Bolted Manway
• 1 X 2" Spare Socket
• 1 X 2" Port with Contents Dipstick
• 1 X 2" Interstitial Access Port
• 1 X 3" Port for Future Fitting of Fusible Cap
• 1 X 3" Spare Socket
• 2 X 1.1/2” Spare
• 1 X 2” Fill Cap

Maintenance

The Fuel Pod is comprised of an innovative double wall tank design which comes with a removable flow forge spill tray floor. It is constructed with a raised pedestrian door to allow for seepage control and employs a man-way cover conveniently located on the rooftop to provide easy access for cleaning, maintenance and inspections.

Dispensing

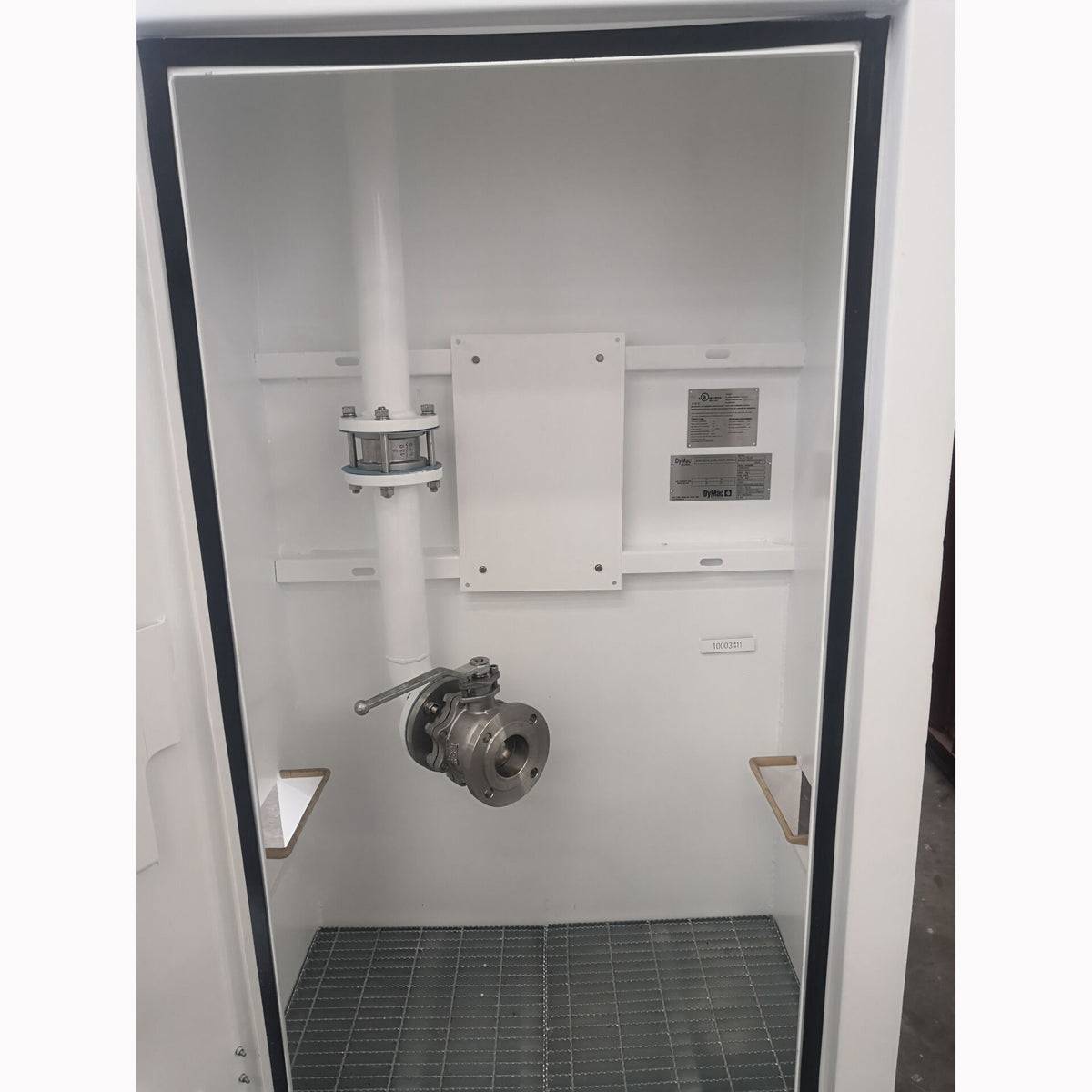

The Fuel Pod Bunded Tank Range has an easily accessible camlock fill pipe connection point conveniently located just inside the pedestrian door. The Range also has an ingenious bracket system that houses 4m to 6m standard hose reels and dispensing nozzles with either analog or digital gauges. The Fuel Pod Bunded Tanks can be conveniently adapted with a fuel management system.

Safety and Security

The Fuel Pod All Terrain Bunded Tank has a walk in pedestrian door with a secure 3 point locking system, ensuring it is static and safe during fuelling.

Approvals & Certifications

• Static Tank Design
• 110% Bunded Tank
• Adhering to BS799 Part 5 Standard
• PG2 (Protection Pollution Guidelines)
• Coded Welding Standards UK and European

If you have any specific requirements, please let us know and we can specify accordingly.

Price is ex-works from Co. Dublin. Delivery to site can be arranged at an additional cost. Please talk to our sales team to discuss delivery options.
