Product Ref: AG1500/S/6VX

Sewage GRP Above Ground Customer Off Loading, Free Delivery Customer Off Loading, Free Delivery

Choose option:

from €3,490.76 ex VAT
(€4,293.63 inc VAT)

Product Description


The complete kit for use in areas where gravity flow is not available. This system is used for the transfer of sewage or waste water, all specially designed for easy installation.

A small, compact sewage pumping station, suitable for cellars, extensions, garden rooms and small applications, consists of -

  • Heavy duty Stainless Steel Submersible Sewage Pumps - available in 6m, 10m lift or Macerator.
  • 50mm solid handling or macerator for peace of mind
  • Complies to BS EN 12050-1:2001 / BS EN 752-6:1998 Standards

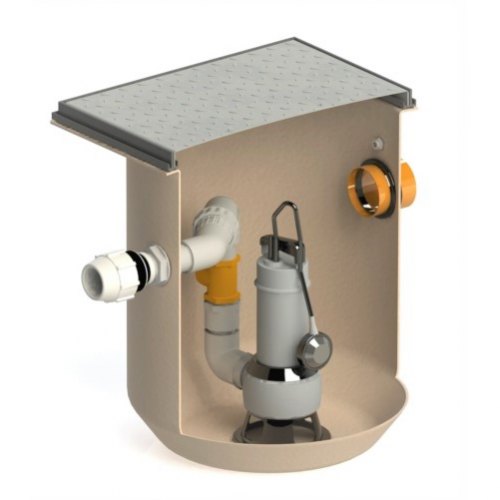

The 1500 Litre Above ground GRP (glass reinforced plastic) Sewage pumping station can pump up to 100m across to mains.

Sewage Pumping Station includes:

  • 50mm Solids sewage pump - 6m, 10m lift or macerator
  • 1598mm x 1098mm x 1118mm high grade GRP moulded basin (1500Ltr)
  • Soft close Non Return Valve
  • Internal 2" PVC (class C) discharge pipe work kit
  • Seal for incoming and outgoing pipework (4" & 2")
  • 12 months warranty
Model Ref 6VX 10VX MC
Impeller Type Vortex Vortex Macerator
Power Supply 230






Rated Power 0.37kW 0.75kW 1.2kW
Rated Current 1.9A 4.0A 9.2A
Max Head 6m 10m 16m
Max Flow Rate 5.5l/s 7.9l/s 1.8l/s
Cable Length 10m 10m 10m
Free Passage 50mm 50mm Macerator

Product Specification

  • Product Code: DPT
  • Fuel Type: Sewage
  • Material: GRP
  • Shape: Above Ground
  • Shipping: Customer Off Loading, Free Delivery
  • Volume: 1500ltr
  • Dimensions: L:1098mm W:1598mm H:1118mm
