251L SINGLE PUMP VARIABLE CAT 5 BOOSTER SET

New
Direct Pumps & Tanks 251L SINGLE PUMP VARIABLE CAT 5 BOOSTER SET

251L SINGLE PUMP VARIABLE CAT 5 BOOSTER SET

Product Ref: CAT5/S/V/251

Water Free Delivery

available Available

updown
€2,839.91 ex VAT
(€3,493.09 inc VAT)
Product Description

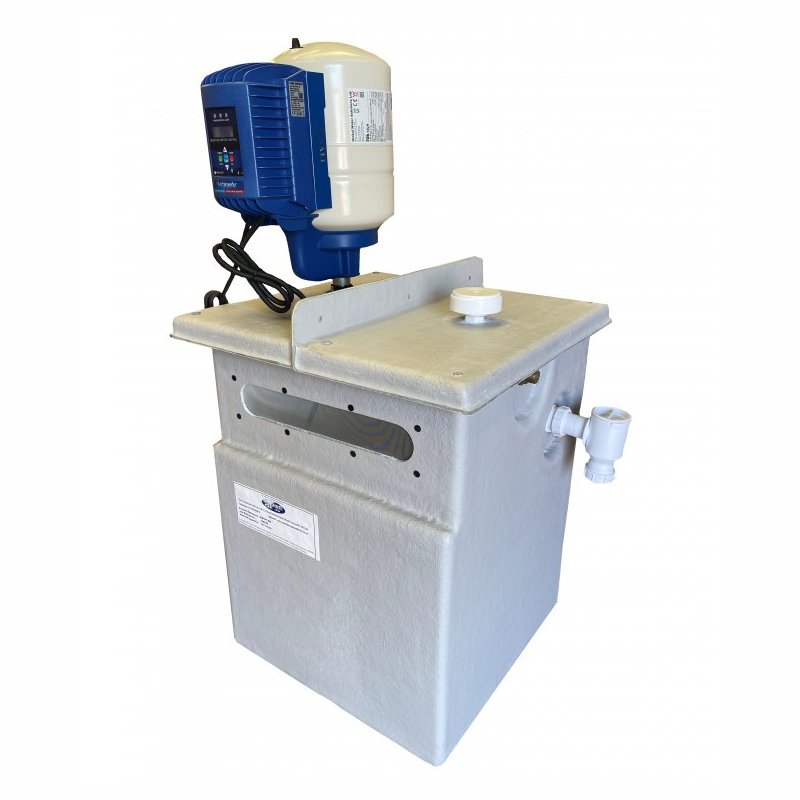

251L SINGLE PUMP VARIABLE CAT 5 BOOSTER SET

The CAT 5 booster set also know as 'Backflow prevention booster set' incorporates a 251 Litre polypropylene break tank complete with a raised ball valve chamber with an AB air gap to WRAS approved regulations. With its simple 'plug and play' installation, it is so fast and easy to install. Fully CAT5 compliant with a WRAS approved GRP storage tank, this tank is the ideal solution for any places where space is a premium, as it can fit on a footprint, as small as 670 mm x 610 mm.


APPLICATIONS INCLUDE:

  • Laboratories
  • Veterinary Surgeries
  • Bin Washdown
  • Mortuaries
  • Abattoirs
  • Bib Tap



TECHNICAL SPECIFICATION

  • Whisper quiet pump - less than 50bd.
  • Pre-assembled for easy installation
  • Wet/pressure tested prior to despatch
  • Compact design with small footprint
  • WRAS approved GRP storage tank
  • WRAS approved 3/4" ball valve fitted as standard
  • Suitable for single phase 230 volt supply only
  • A standard opening offers unobstructed access to the system
  • Low water level protection
  • Maximum allowable static head is 12 meters

OPERATION

The CAT 5 Booster set is designed to monitor the system pressure. As the demand increases the pressure will fall and the pump will start to run until the demand has stopped and the pressure increases. The variable speed option has the advantages of maintaining constant pressure, which reduces running costs and saves energy.


PUMP SPECIFICATION

Stainless steel WRAS approved mulitstage pump complete with variable speed controlled, 230 volt single phase supply.


CONTROLLERS

This unit is an energy saving device and has the capabilities to run with a BMS connection.

Delivery Terms

Kingspan Tanks - Tail-lift deliveries are available for most tanks up to 2,000 Litre capacities for kerbside delivery.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Klargester Tanks  - All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.
HIAB off-loading is available at extra cost, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Harlequin Tanks  - Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities for kerbside delivery subject to availability.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

tanks.ie undertakes to attempt to fulfill all orders within a maximum of 7 working days of order acceptance, unless advised otherwise. In the event that any order is delayed, tanks.ie will not be responsible for any consequential loss or damage that this delay may cause.

Smaller items (including most accessories and consumables) will normally be despatched by courier.
Larger items (including all storage tanks) will normally be delivered by carrier.

Please note that for all items delivered by carrier, normally a truck + 40ft trailer, it is the customer's responsibility to ensure adequate vehicular access and to provide suitable offloading equipment, where required. Please notify us, if this might pose a problem and we will endeavour to facilitate your request.

Returns Information

ORDER CANCELLATION

In accordance with Irish and European Union consumer laws, you have seven days after receipt of order to cancel the order in its entirety or any part thereof, providing the goods are in a re-saleable condition. Should you wish to cancel any order, you must first contact [email protected] for a ‘Returns Authorisation Number’.

Please call 051 351325 or e-mail [email protected]


After the Returns Authorisation Number has been issued, we will make arrangements with you for the goods to be returned. If you wish tanks.ie to arrange the collection of the goods, please note that a carriage and administration charge will apply, which will not exceed 35% of the gross value of the goods.

Upon return of the cancelled goods to tanks.ie and verification that they are in a re-saleable condition, we will refund the value of the goods, less any collection and administration charges, within 28 days.

DEFECTIVE PRODUCTS

If you believe that products you have purchased from tanks.ie are defective, please report this immediately to tanks.ie by e-mail [email protected] or call 051 351325.

If they are within the manufacturer’s guarantee period, we will arrange with the manufacturer to replace or repair the goods at the manufacturer’s discretion and consistent with their guarantee.
Where it is necessary to inspect the goods on site and an inspection proves the fault is neither the fault of tanks.ie, nor the product manufacturer, an inspection charge will apply, which will be advised by the manufacturer prior to site inspection.

Please note that where guarantees are available in excess of those required by law, these are provided at the discretion of the product manufacturer and not tanks.ie. Additionally, tanks.ie will not be liable for any claims for consequential damage or loss.

Product Specification

  • Product Code: DPT
  • Fuel Type: Water
  • Shipping: Free Delivery
  • Dimensions: D:670mm W:610mm H:1500mm
