3000L Platin Indirect Rainwater Harvesting System

3000L Platin Indirect Rainwater Harvesting System

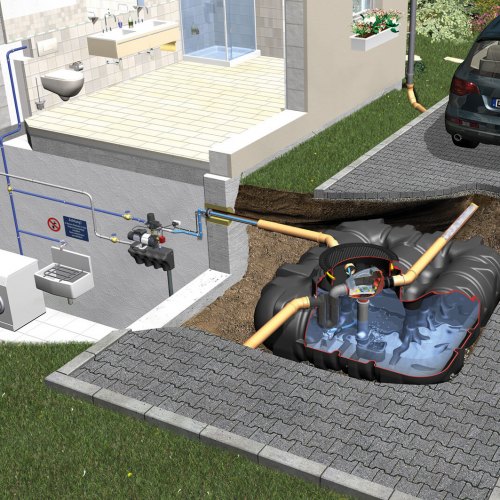

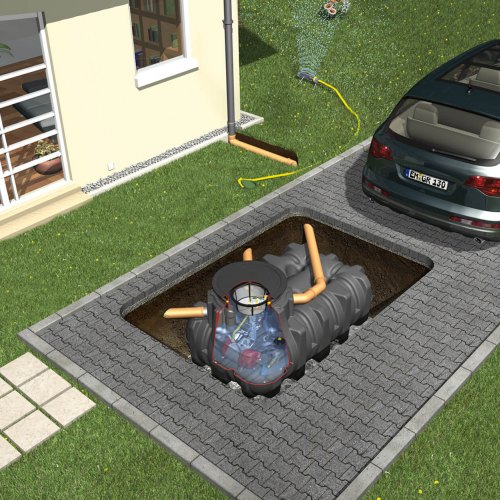

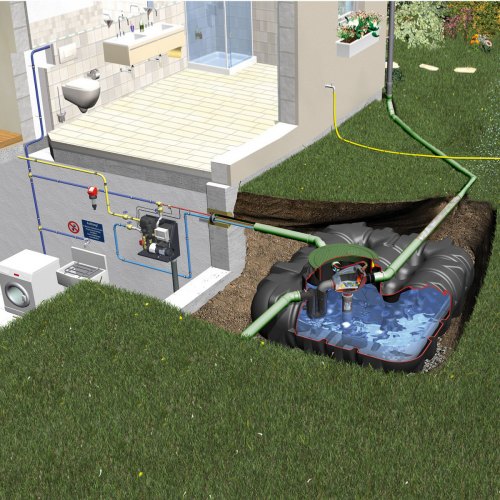

The 3000L Platin Indirect Rainwater Harvesting System is a reliable domestic solution for rainwater collection with submersible pump and header tank system that is suitable for use with toilets, washing machines, garden watering, pressure washing and car washing.

Benefits:

• Simple & quick to install
• Submersible pump supplies harvested rainwater on demand to the header tank where it is then gravity fed to the WCs & washing machine
• The header tank controls the operation of the system and the supply of harvested rainwater and backup mains water to the WCs
• Dual valve system within the header tank prioritises rainwater supply over mains water, maximising the use of all available rainwater to save on mains water consumption
• Mains water switchover point is at a lower level in the header tank when rainwater is not available from the underground Platin tank
• Mains water backup supply is not reliant on power supply or pump pressure and therefore guarantees supply of water to WCs at all times

Comes With:

• 5000L Underground tank
• Telescopic lid (choice of telescopic lid available, depending on tank location)
• Minimax filter supplied in accordance with type of tank
• Submersible pump with floating water intake
• Float switch (connected from mains water backup unit to the underground tank)
• 100mm diameter duct pipe to contain; float sensor cable, power cable for pump
• 100mm diameter drainage pipe connected from downpipes to the inlet at the top of the tank (all downpipes brought into one pipe for connection to the filter)
• 100mm diameter pipe for overflow from the tank to mains drainage network or soakaway
• Header tank package

• Product Code: GRAF
• Fuel Type: Water
• Guarantee: 15 Year
• Shape: Underground
• Shipping: Customer Off Loading
• Volume: 3000ltr
• Dimensions: L:2450mm W:2100mm H:1050mm

Kingspan Tanks - Tail-lift deliveries are available for most tanks up to 2,000 Litre capacities for kerbside delivery.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Klargester Tanks  - All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.
HIAB off-loading is available at extra cost, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Harlequin Tanks  - Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities for kerbside delivery subject to availability.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

tanks.ie undertakes to attempt to fulfill all orders within a maximum of 7 working days of order acceptance, unless advised otherwise. In the event that any order is delayed, tanks.ie will not be responsible for any consequential loss or damage that this delay may cause.

Smaller items (including most accessories and consumables) will normally be despatched by courier.
Larger items (including all storage tanks) will normally be delivered by carrier.

Please note that for all items delivered by carrier, normally a truck + 40ft trailer, it is the customer's responsibility to ensure adequate vehicular access and to provide suitable offloading equipment, where required. Please notify us, if this might pose a problem and we will endeavour to facilitate your request.

ORDER CANCELLATION

In accordance with Irish and European Union consumer laws, you have seven days after receipt of order to cancel the order in its entirety or any part thereof, providing the goods are in a re-saleable condition. Should you wish to cancel any order, you must first contact sales@tanks.ie for a ‘Returns Authorisation Number’.

Please call 051 351325 or e-mail sales@tanks.ie


After the Returns Authorisation Number has been issued, we will make arrangements with you for the goods to be returned. If you wish tanks.ie to arrange the collection of the goods, please note that a carriage and administration charge will apply, which will not exceed 35% of the gross value of the goods.

Upon return of the cancelled goods to tanks.ie and verification that they are in a re-saleable condition, we will refund the value of the goods, less any collection and administration charges, within 28 days.

DEFECTIVE PRODUCTS

If you believe that products you have purchased from tanks.ie are defective, please report this immediately to tanks.ie by e-mail sales@tanks.ie or call 051 351325.

If they are within the manufacturer’s guarantee period, we will arrange with the manufacturer to replace or repair the goods at the manufacturer’s discretion and consistent with their guarantee.
Where it is necessary to inspect the goods on site and an inspection proves the fault is neither the fault of tanks.ie, nor the product manufacturer, an inspection charge will apply, which will be advised by the manufacturer prior to site inspection.

Please note that where guarantees are available in excess of those required by law, these are provided at the discretion of the product manufacturer and not tanks.ie. Additionally, tanks.ie will not be liable for any claims for consequential damage or loss.

Graf Rainwater Harvesting Brochure
