3001L ABOVE GROUND MINI PUMPING STATION

3001L ABOVE GROUND MINI PUMPING STATION

Product Ref: AG3001/S/6VX

Sewage GRP Above Ground Customer Off Loading, Free Delivery Customer Off Loading, Free Delivery

available Available

Choose option:

updown
from €4,344.83 ex VAT
(€5,344.14 inc VAT)
Downloadable documents

pdfAG Spec Sheet

pdfAG MINI 3001 DWG

Product Description

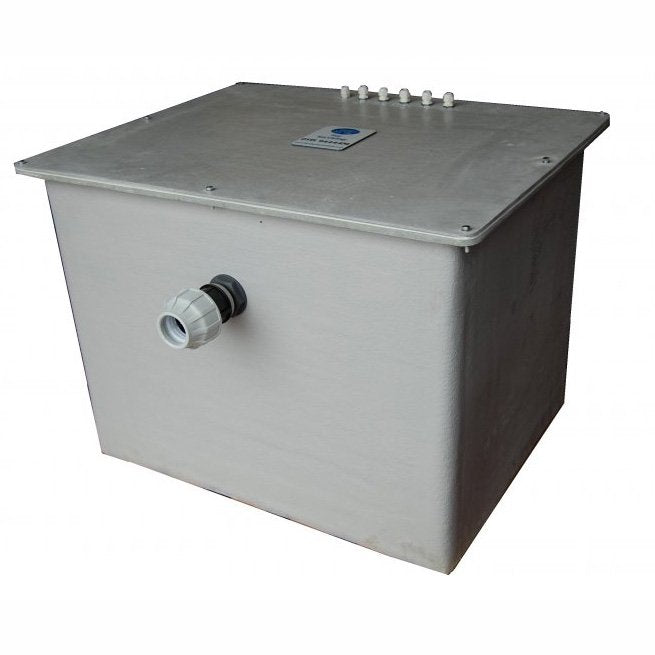

3001L ABOVE GROUND MINI PUMPING STATION

The complete kit for use in areas where gravity flow is not available. This system is used for the transfer of sewage or waste water, all specially designed for easy installation.

A small, compact sewage pumping station, suitable for cellars, extensions, garden rooms and small applications, consists of -

  • Heavy duty Stainless Steel Submersible Sewage Pumps - available in 6m, 10m lift or Macerator.
  • 50mm solid handling or macerator for peace of mind
  • Complies to BS EN 12050-1:2001 / BS EN 752-6:1998 Standards

The 3001 Litre Above ground GRP (glass reinforced plastic) Sewage pumping station can pump up to 100m across to mains.

Sewage Pumping Station includes:

  • 50mm Solids sewage pump - 6m, 10m lift or macerator
  • 2094mm x 2094mm x 1593mm high grade GRP moulded basin (2501Ltr)
  • Soft close Non Return Valve
  • Internal 2" PVC (class C) discharge pipe work kit
  • Seal for incoming and outgoing pipework (4" & 2")
  • 12 months warranty
Model Ref 6VX 10VX MC
Impeller Type Vortex Vortex Macerator
Power Supply 230

~1ph~50hz

230

~1ph~50hz

230

~1ph~50hz

Rated Power 0.37kW 0.75kW 1.2kW
Rated Current 1.9A 4.0A 9.2A
Max Head 6m 10m 16m
Max Flow Rate 5.5l/s 7.9l/s 1.8l/s
Cable Length 10m 10m 10m
Free Passage 50mm 50mm Macerator

Delivery Terms

Kingspan Tanks - Tail-lift deliveries are available for most tanks up to 2,000 Litre capacities for kerbside delivery.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Klargester Tanks  - All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.
HIAB off-loading is available at extra cost, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Harlequin Tanks  - Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities for kerbside delivery subject to availability.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

tanks.ie undertakes to attempt to fulfill all orders within a maximum of 7 working days of order acceptance, unless advised otherwise. In the event that any order is delayed, tanks.ie will not be responsible for any consequential loss or damage that this delay may cause.

Smaller items (including most accessories and consumables) will normally be despatched by courier.
Larger items (including all storage tanks) will normally be delivered by carrier.

Please note that for all items delivered by carrier, normally a truck + 40ft trailer, it is the customer's responsibility to ensure adequate vehicular access and to provide suitable offloading equipment, where required. Please notify us, if this might pose a problem and we will endeavour to facilitate your request.

Returns Information

ORDER CANCELLATION

In accordance with Irish and European Union consumer laws, you have seven days after receipt of order to cancel the order in its entirety or any part thereof, providing the goods are in a re-saleable condition. Should you wish to cancel any order, you must first contact [email protected] for a ‘Returns Authorisation Number’.

Please call 051 351325 or e-mail [email protected]


After the Returns Authorisation Number has been issued, we will make arrangements with you for the goods to be returned. If you wish tanks.ie to arrange the collection of the goods, please note that a carriage and administration charge will apply, which will not exceed 35% of the gross value of the goods.

Upon return of the cancelled goods to tanks.ie and verification that they are in a re-saleable condition, we will refund the value of the goods, less any collection and administration charges, within 28 days.

DEFECTIVE PRODUCTS

If you believe that products you have purchased from tanks.ie are defective, please report this immediately to tanks.ie by e-mail [email protected] or call 051 351325.

If they are within the manufacturer’s guarantee period, we will arrange with the manufacturer to replace or repair the goods at the manufacturer’s discretion and consistent with their guarantee.
Where it is necessary to inspect the goods on site and an inspection proves the fault is neither the fault of tanks.ie, nor the product manufacturer, an inspection charge will apply, which will be advised by the manufacturer prior to site inspection.

Please note that where guarantees are available in excess of those required by law, these are provided at the discretion of the product manufacturer and not tanks.ie. Additionally, tanks.ie will not be liable for any claims for consequential damage or loss.

Product Specification

  • Product Code: DPT
  • Fuel Type: Sewage
  • Material: GRP
  • Shape: Above Ground
  • Shipping: Customer Off Loading, Free Delivery
  • Volume: 3001ltr
  • Dimensions: D:2094mm W:2094mm H:1593mm
