3500L MAXI PUMPING STATION

3500L MAXI PUMPING STATION

3500L MAXI PUMPING STATION

Product Ref: MAXI3500S/GR/6VX

Sewage Cylindrical Customer Off Loading, Free Delivery Customer Off Loading, Free Delivery Single

available Available

Choose option:

updown
from €2,845.65 ex VAT
(€3,500.15 inc VAT)
Product Description

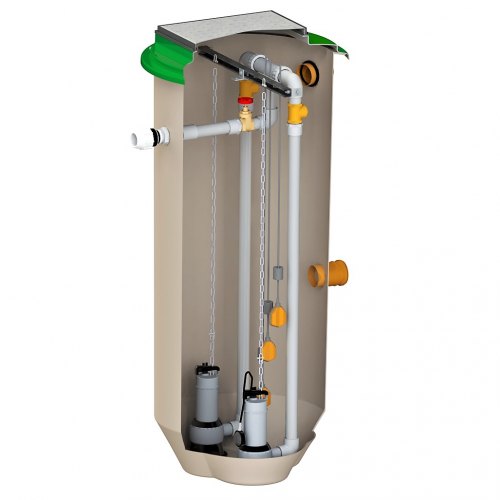

3500L MAXI PUMPING STATION


A packaged pump station is used when gravity drainage on site cannot be achieved. The waste from the site flows into an underground storage chamber, where it is then pumped to the main sewer. Packaged pump stations can be used for both foul water (sewage) and surface water applications. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards. The Maxi 3500L Pump Station is suitable for a domestic sewage pumping station for use in areas where gravity flow is not available. It can be used for various drainage applications, with the system also used for the transfer of sewage or waste water, all specially designed for easy installation.

The Single Maxi 3500L is a compact sewage pump station suitable for small to large houses and also commercial applications and particularly suitable when water or sewage is collected lower than the main sewer or a septic tank system.
All you need is supplied to you within the package, so you will just need to supply the pipework to and from the station, plus any fittings. A high water alarm is available if required. The Pumping Station comes with a submersible pump with 50mm solid handling for peace of mind. Our range of pumping stations is of a superior design and quality, to meet with BSEN75.6 requirements.


Pump:

  • Cast iron/stainless steel construction
  • 50mm (2") solids handling capacity
  • Coolant filled motor
  • Mechanical seal
  • 10 M cable
  • Max 6 M lift
  • Max flow 5 L/sec
  • Float switch as standard
  • 4 x 10M float controls
  • 1 x float bracket


Optional Extra: High level alarm


Tank:





  • Polyethylene tank
  • Dim: 1.5MØ x 2.0M D
  • Capacity : 3500
  • 1 x 110mm/160mm inlet seal to allow inlet to be drilled on site
  • 40mm cable duct
  • 2" internal pipe work
  • 2" non-return valve
  • 2" quick release coupling
  • 2" cable duct
  • Special audible/visual high level alarm control box available


Offloading by customer





Delivery Terms

Kingspan Tanks - Tail-lift deliveries are available for most tanks up to 2,000 Litre capacities for kerbside delivery.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Klargester Tanks  - All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.
HIAB off-loading is available at extra cost, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Harlequin Tanks  - Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities for kerbside delivery subject to availability.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

tanks.ie undertakes to attempt to fulfill all orders within a maximum of 7 working days of order acceptance, unless advised otherwise. In the event that any order is delayed, tanks.ie will not be responsible for any consequential loss or damage that this delay may cause.

Smaller items (including most accessories and consumables) will normally be despatched by courier.
Larger items (including all storage tanks) will normally be delivered by carrier.

Please note that for all items delivered by carrier, normally a truck + 40ft trailer, it is the customer's responsibility to ensure adequate vehicular access and to provide suitable offloading equipment, where required. Please notify us, if this might pose a problem and we will endeavour to facilitate your request.

Returns Information

ORDER CANCELLATION

In accordance with Irish and European Union consumer laws, you have seven days after receipt of order to cancel the order in its entirety or any part thereof, providing the goods are in a re-saleable condition. Should you wish to cancel any order, you must first contact [email protected] for a ‘Returns Authorisation Number’.

Please call 051 351325 or e-mail [email protected]


After the Returns Authorisation Number has been issued, we will make arrangements with you for the goods to be returned. If you wish tanks.ie to arrange the collection of the goods, please note that a carriage and administration charge will apply, which will not exceed 35% of the gross value of the goods.

Upon return of the cancelled goods to tanks.ie and verification that they are in a re-saleable condition, we will refund the value of the goods, less any collection and administration charges, within 28 days.

DEFECTIVE PRODUCTS

If you believe that products you have purchased from tanks.ie are defective, please report this immediately to tanks.ie by e-mail [email protected] or call 051 351325.

If they are within the manufacturer’s guarantee period, we will arrange with the manufacturer to replace or repair the goods at the manufacturer’s discretion and consistent with their guarantee.
Where it is necessary to inspect the goods on site and an inspection proves the fault is neither the fault of tanks.ie, nor the product manufacturer, an inspection charge will apply, which will be advised by the manufacturer prior to site inspection.

Please note that where guarantees are available in excess of those required by law, these are provided at the discretion of the product manufacturer and not tanks.ie. Additionally, tanks.ie will not be liable for any claims for consequential damage or loss.

Product Specification

  • Product Code: DPT
  • Fuel Type: Sewage
  • Shape: Cylindrical
  • Shipping: Customer Off Loading, Free Delivery
  • Twin or Single: Single
  • Volume: 3500ltr
  • Dimensions: H:2000mm
  • Diameter: 1500mm
