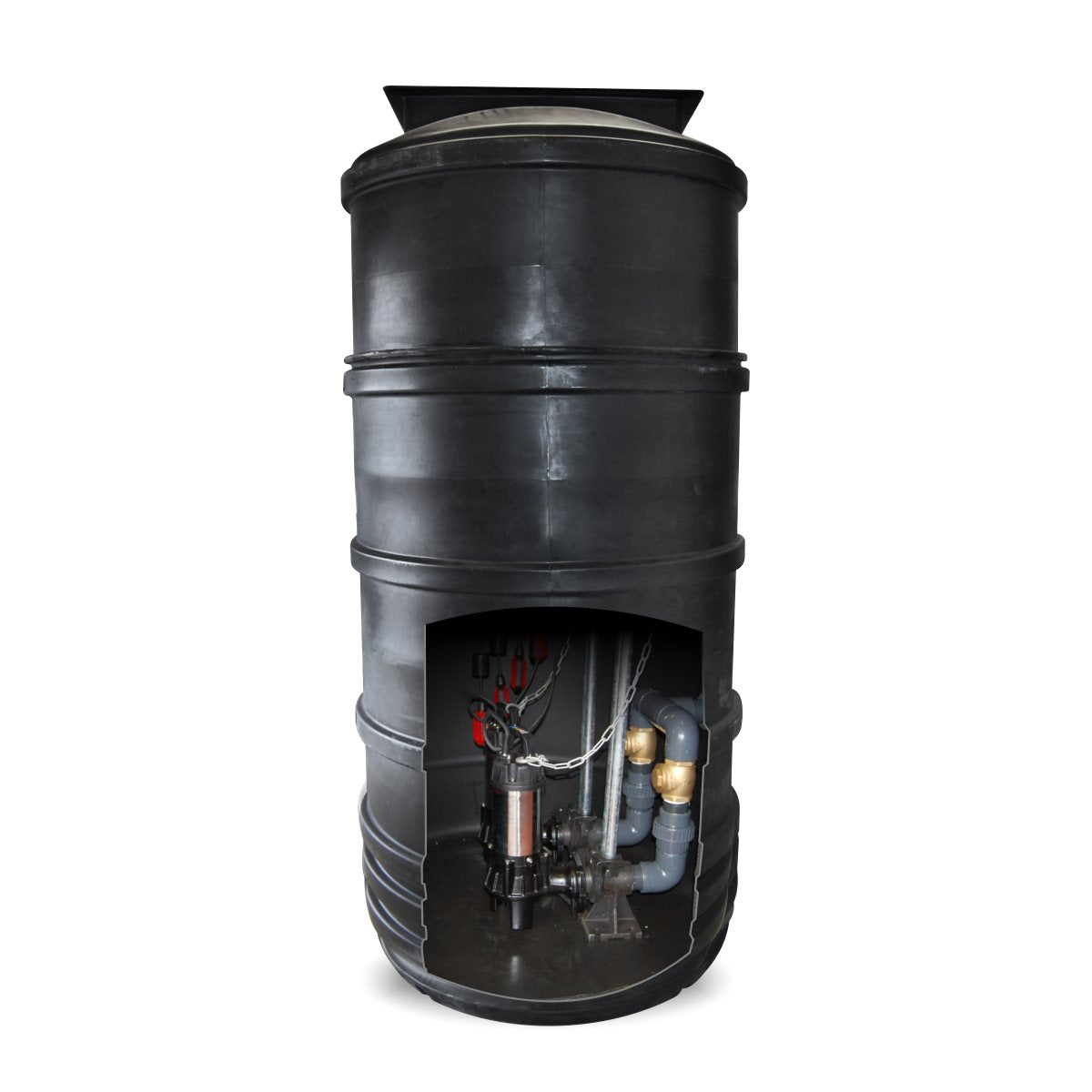

3500L MAXI TWIN PUMPING STATION

Product Ref: MAXI3500T/GR/6VX

Sewage Cylindrical Customer Off Loading, Free Delivery Customer Off Loading, Free Delivery Twin

Choose option:

updown
from €5,077.65 ex VAT
(€6,245.51 inc VAT)

Product Description

3500L MAXI TWIN PUMPING STATION

A packaged pump station is used when gravity drainage on site cannot be achieved. The waste from the site flows into an underground storage chamber, where it is then pumped to the main sewer. Packaged pump stations can be used for both foul water (sewage) and surface water applications. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards. The Maxi 3500L Pump Station is suitable for a domestic sewage pumping station for use in areas where gravity flow is not available. It can be used for various drainage applications, with the system also used for the transfer of sewage or waste water, all specially designed for easy installation.

The Maxi 3500L is a compact sewage pump station suitable for small to large houses and also commercial applications and is particularly suitable when water or sewage is collected lower than the main sewer or a septic tank system. All you need is supplied to you within the package, so you will just need to supply the pipework to and from the station, plus any fittings. A high water alarm is supplied as standard. The Pumping Station comes with a submersible pump with 50mm solid handling for peace of mind. Our range of pumping stations is of a superior design and quality, to meet with BSEN75.6 requirements.



Pump:

  • Cast iron/stainless steel construction
  • 50mm (2') solids handling capacity
  • Coolant filled motor
  • Mechanical seal
  • 10 M cable
  • Max 6 M lift
  • Max flow 5 L/sec
  • Float switch as standard
  • Controls
  • Twin control panel, c/w auto change over and high level alarm
  • 4 x 10M float controls
  • 1 x float bracket



Tank:

  • Polyethylene tank
  • Dim: 1.5MØ x 2.5M D
  • Capacity : 3500L
  • Screw down lid (pedestrian rated)
  • 1 x 110mm/160mm inlet seal to allow inlet to be drilled on site
  • 40mm cable duct
  • 2' internal pipe work
  • 2' non-return valve
  • 2' quick release coupling
  • 2' cable duct


Special audible/visual high level alarm control box available.


Offloading by customer





Product Specification

  • Product Code: DPT
  • Fuel Type: Sewage
  • Shape: Cylindrical
  • Shipping: Customer Off Loading, Free Delivery
  • Twin or Single: Twin
  • Volume: 3500ltr
  • Dimensions: H:2000mm
  • Diameter: 1500mm
