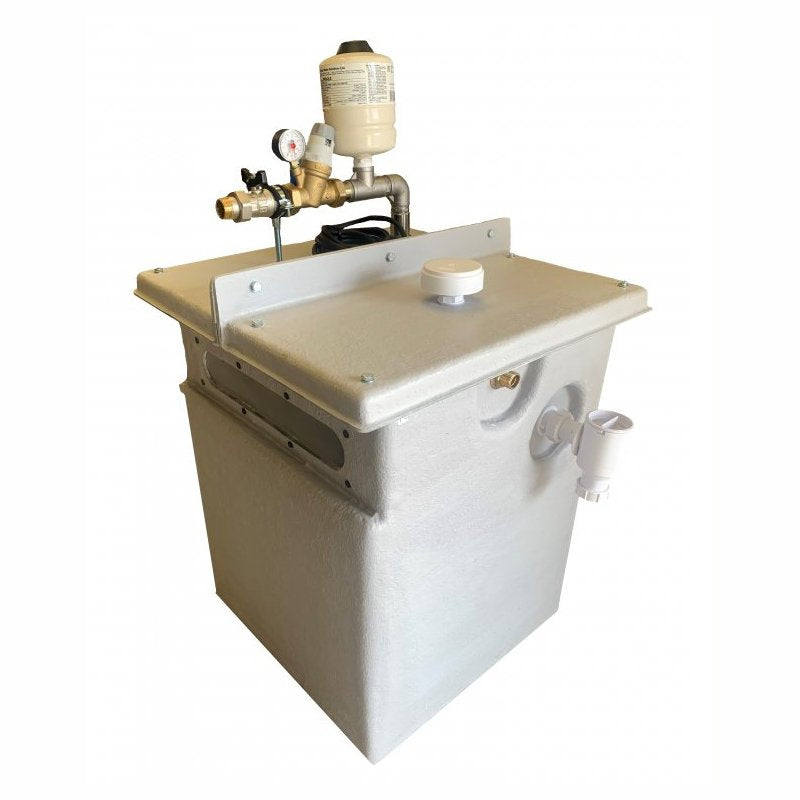

375L SINGLE PUMP FIXED CAT 5 BOOSTER SET
Product Ref: CAT5/S/375


Product Description
375L SINGLE PUMP FIXED CAT 5 BOOSTER SET
The CAT 5 booster set also know as Backflow prevention booster set incorporates a 375 Litre GRP WRAS approved break tank complete with a raised ball valve chamber with an AB air gap to WRAS approved regulations.
APPLICATIONS INCLUDE:
- Laboratories
- Veterinary Surgeries
- Bin Washdown
- Mortuaries
- Abattoirs
- Bib Tap
OPERATION:
The CAT 5 Booster set is designed to monitor the system pressure. As the demand increases the pressure will fall and the pump will start to run until the demand has stopped and the pressure increases.
PUMP SPECIFICATION:
Multistage pump complete built in pressure switch, 230 volt single phase supply.
TECHNICAL SPECIFICATIONS:
- Single Pump Packaged Booster Set and CAT5 Break Tank.
- Fixed Speed Pressure Pump - Variable speed optional upon request.
- Pre-assembled for easy installation.
- Wet/Pressure tested prior to despatch.
- Quiet operation, less than 50 decibels.
- Compact design, narrow width ideal for access through doorways.
- WRAS Approved water storage tank manufactured from GRP with 25mm insulation.
- WRAS Approved 3
- 4" High flow ball valve fitted.
- 1 Phase 230 Volt supply.
- Low Water Level Protection.
- WRAS Approved fully adjustable system pressure reducing valve fitted.
- Maximum allowable static head 12 metres.
