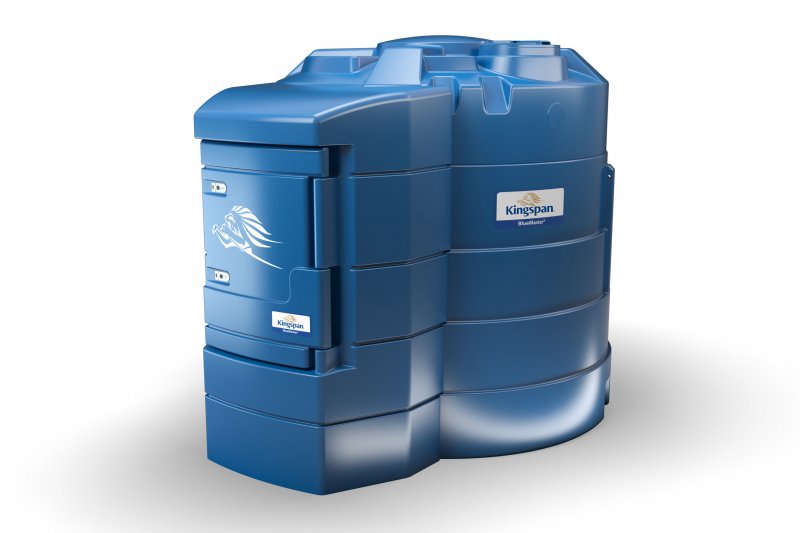

5000L BLUEMASTER ADVANCED

5000L BLUEMASTER ADVANCED

The Kingspan BlueMaster range offers a robust and convenient on-site storage solution. The range has been specifically designed for the secure storage, dispensing, management and protection of AdBlue®. All BlueMaster tanks are double skinned for environmental protection and to safeguard against contamination Kingspan BlueMaster tanks ensure your AdBlue® remains pure for its lifetime in the tank protecting your assets and the environment.

This is accomplished in three ways:

Closed Fluid Path

Manufacturers of AdBlue® agree that the closed controlled systems, like those found in Kingspan BlueMaster tanks, rigorously maintain AdBlue® purity.

Manufacturing and Material Compliance

All BlueMaster tanks conform to the highest manufacturing and material compliance standards (EN ISO 9001:2015) to deal with the chemical characteristics of AdBlue®.

Expertise & Knowledge

Kingspan has over 40 years’ expert experience in the engineering and manufacturing of liquid storage solutions. Over the past 10 years we have worked with AdBlue® producers to create one of the safest and most environmentally responsible storage solutions available.

The BlueMaster Terminal Tank range is available from 2,500 – 9,000 litres. A storage solution designed to be incorporated into existing stand-alone dispensing and fuel management systems. Storage tanks complete with a submersible pump and a pulsed output via the Kingspan TMS tank monitoring system. The BlueMaster Standard Tank range is an entry level dispensing system with quality and functionality in mind. Also comes with optional upgrades to suit the majority of requirements.

Quality

Quality product and quality service ensure absolute peace of mind. With Kingspan your AdBlue® purity and your vehicles are protected.

Return on Investment

Onsite bulk storage means you, as an AdBlue® user, benefit from better logistical planning and fleet owners can purchase larger volumes – saving everyone time and money.

Service

Exceptional customer service is our top priority which is why we offer full technical and after-sales support, a trustworthy 10 year guarantee*. *10 year warranty applies to tank only

Specification;

• Double skinned tank
• Submersible pump - 80l/min, flow rate 35-40 lpm at nozzle
• 2" Stainless steel dry coupling connection
• Kingspan TMS
• Piusi automatic dispensing nozzle with nozzle holder pump switch
• Flowmeter
• 8m x 3/4" EPDM delivery hose
• Prepared for Kingspan WAP telemetry
• Light in housing

Kingspan Sensor Tank Monitoring System (TMS) Key Features:

• Power supply for system devices
• LCD display
• Overfill alarm
• 100 impulse/litre output
• Contents measurement – via Ultrasonic Sensor
• Level and leak alerts
• 4-20 mA output

The ZVA Automatic AdBlue Magnetic Nozzle is designed for use in conjunction with the ELAFIX 40 adaptor in order to prevent the costly miss-filling of AdBlue into the diesel tank.

This magnetic spout ZVA Nozzle will only allow fluid to pass once it has been magnetically opened by the ELAFIX AdBlue magnetic adaptor fitted within the vehicle filler neck.

• Product Code: KING
• Colour: Blue
• Fuel Type: Adblue
• Guarantee: 10 Year
• Material: MDPE
• Shape: Above Ground
• Shipping: Free Delivery
• Volume: 5000ltr
• Dimensions: L:2850mm W:2250mm H:2350mm
