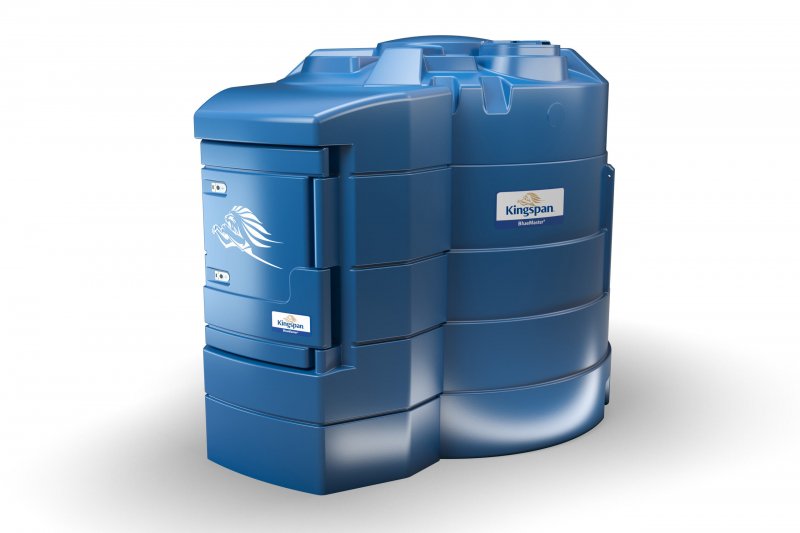

5000L BLUEMASTER TERMINAL

5000L BLUEMASTER TERMINAL

The Kingspan BlueMaster range offers a robust and convenient on-site storage solution. The range has been specifically designed for the secure storage, dispensing, management and protection of AdBlue®. All BlueMaster tanks are double skinned for environmental protection and to safeguard against contamination Kingspan BlueMaster tanks ensure your AdBlue® remains pure for its lifetime in the tank protecting your assets and the environment.

This is accomplished in three ways:

Closed Fluid Path

Manufacturers of AdBlue® agree that the closed controlled systems, like those found in Kingspan BlueMaster tanks, rigorously maintain AdBlue® purity.

Manufacturing and Material Compliance

All BlueMaster tanks conform to the highest manufacturing and material compliance standards (EN ISO 9001:2015) to deal with the chemical characteristics of AdBlue®.

Expertise & Knowledge

Kingspan has over 40 years’ expert experience in the engineering and manufacturing of liquid storage solutions. Over the past 10 years we have worked with AdBlue® producers to create one of the safest and most environmentally responsible storage solutions available.

The BlueMaster Terminal Tank range is available from 2,500 – 9,000 litres. A storage solution designed to be incorporated into existing stand-alone dispensing and fuel management systems. Storage tanks complete with a submersible pump and a pulsed output via the Kingspan TMS tank monitoring system.

Quality

Quality product and quality service ensure absolute peace of mind. With Kingspan your AdBlue® purity and your vehicles are protected.

Return on Investment

Onsite bulk storage means you, as an AdBlue® user, benefit from better logistical planning and fleet owners can purchase larger volumes – saving everyone time and money.

Service

Exceptional customer service is our top priority which is why we offer full technical and after-sales support, a trustworthy 10 year guarantee*. *10 year warranty applies to tank only

Specification;

• Double skinned tank
• Submersible pump
• 2" Stainless steel dry coupling connection
• Kingspan TMS
• 1" Stainless steel ball valve terminated connection
• Prepared for Kingspan WAP telemetry

Kingspan Sensor Tank Monitoring System (TMS) Key Features:

• Power supply for system devices
• LCD display
• Overfill alarm
• 100 impulse/litre output
• Contents measurement – via Ultrasonic Sensor
• Level and leak alerts
• 4-20 mA output

• Product Code: KING
• Colour: Blue
• Fuel Type: Adblue
• Guarantee: 10 Year
• Material: MDPE
• Shape: Above Ground
• Shipping: Free Delivery
• Volume: 5000ltr
• Dimensions: L:2850mm W:2250mm H:2350mm
