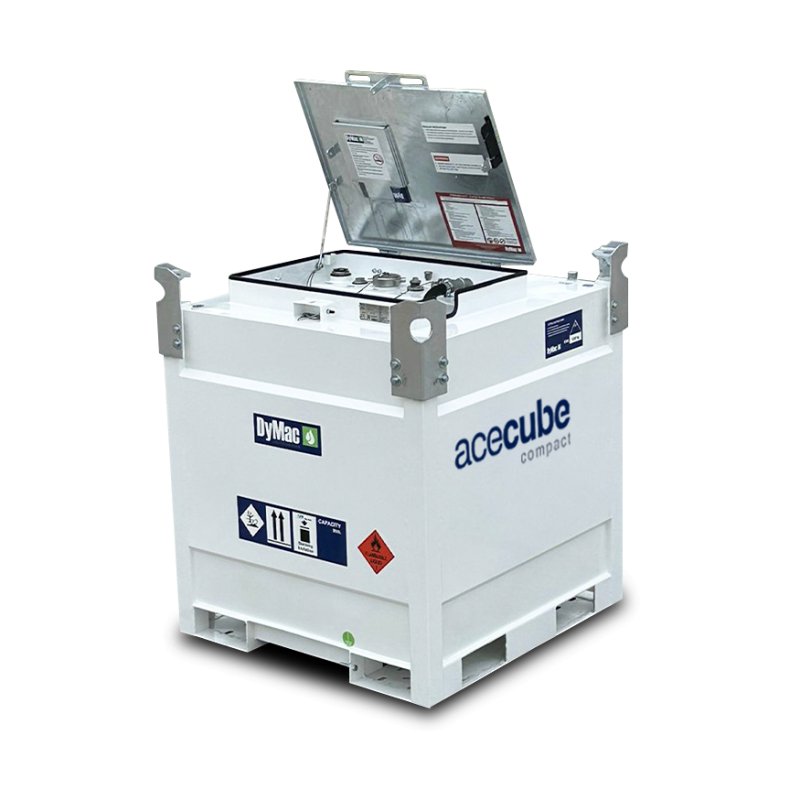

900L ACECUBE COMPACT

900L ACECUBE COMPACT

The AceCube Compact tank range is the go to fuelling solution across the construction, industrial and farming sectors. The tank can be used for any number of direct fuelling applications, including providing bulk fuel supply to on-site water pumps or critical power generators. It features four galvanised stacking corners and comes complete with a large primary hatch lid. The AceCube Range is the perfect choice for a secondary or standby fuel source as the innovative system design protects against spillage and fume evaporations or emissions through the valves and venting systems, making it the ideal choice for standby fuel storage on quarries, building sites or farms.
This transportable tank design has an easily accessible lockable equipment compartment area to accommodate the safe and secure storage of a 12V/24V electric pump, inline water and particle filter, dispensing nozzle with 4m delivery hose, and power cables all of which can supplied. The steel tank is a UN ADR approved 110% bunded transportable fuel storage tank.

SUITABLE FOR:

• Equipment Rental
• Diesel Generator Power
• Municipalities
• Construction
• Fuel Distribution
• Mining
• Military Orgaisations

SPECIFICATION

• Nominal Capacity - 849 Litres
• 95% Safe Fill: 807 Litres
• Outer Tank Thickness - 2mm
• Inner Tank Thickness - 2mm
• Empty Weight - 402kg
• P.Vent - 1x 2" NPT Internal Threaded Coupling with 2" Pressure Vent.
• Spare - 1x 1.5" BSP Internal Threaded Coupling with 1.5" Galvanised MS Plug.
• Fill - 1x 3" BSP Galvanised External Threaded Pipe with 3" BSP Fusible Cap.
• Feed - 1x 1.5" BSP Internal Threaded Coupling, 1.5" Male with 0.5" Female Hex Adaptor, 0.5" Male with 3/8" Female Threaded Adaptor, BSP External Threaded CS Downpipe with 3/8" Galvanised MS Plug.
• E.Vent - 1x 1/4" BSP Internal Threaded Coupling with 1/4" E.Vent (Actuant).
• Fill Vent - 1x 2" BSP External Threaded Pipe with 2" BSP Cap.
• Feed Assembly - 1x 2" BSP Internal Threaded Coupling, 2" Male with 1" Female Hex Adaptor, 1" BSP External Threaded Downpipe with
• HDPE NRV, 1" BSP External Threaded Elbow, 1" Female T-Joint with 2x1" Galvanised MS Plug.
• Level Gauge - 1x 1.5" BSP Internal Threaded Coupling with 1.5" Level Gauge.
• Free Vent - 1x 0.5" BSP Internal Threaded Coupling with 0.5" Free Vent.
• Drain - 1x 1" BSP External Threaded CS Galvanised Downpipe with 1" Cap.
• Dipstick - 1x 5mm Dia x 1046L, Aluminium/Galvanised Mild Steel Rod.

Approvals & Certifications

• CE Marked
• UN 31 A/Y Complpiant Design
• Lifting when full
• Vibration Tested

DISPENSING

The AceCube Stationary tank comes with a spacious equipment chamber which engages a bespoke universal bracket system that can support retractable hose reels, along with a variety of pumps and dispensing kits

MAINTENANCE

To ensure efficient and unemcumbered cleaning, maintenance and inspection, the three tier component design allows the inner tanks to be completely removed and disconnected ensuring minimal downtime.

STACKING

All AceCube Stationary tanks are designed to be stackable in a 40ft container. These stackable corners double up as lifting lugs for ease of maneauverability.

TRANSPORTATION

This AceCube Stationary tank is a bunded fuel storage and is used for fuelling in a permanent poistion. It is safely transportable when empty of fluids only. This refuelling tank comes with a bidirectional forklift pocket design and comes with internal baffle plates for protection against sloshing when transporting.

DISPENSING EQUIPMENT OPTION COMES WITH:-

• 12V/24V Diesel Electric Pump
• 4m x 1" Delivery Hose
• Automatic 56 lpm Dispensing Nozzle
• 2m Power Cable with positive and negative battery clips
• K24 Flow meter
• Inline particle and water separator filter

Price is ex-works from Co. Dublin. Delivery to site can be arranged at an additional cost. Please talk to our sales team to discuss delivery options.

• Product Code: DYM
• Fuel Type: Diesel, Gas Oil, Heating Oil, Oil
• Guarantee: 3 Year
• Volume: 849ltr
• Weight: 402.000kg
• Dimensions: L:1190mm W:1150mm H:1296mm
