ADJUSTABLE OIL CLOCK GAUGE
ADJUSTABLE OIL CLOCK GAUGE
Reliable level gauge for accurate fuel or water monitoring. Easy-read display compatible with most standard tank fittings.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Kingspan Energy
What makes this GAUGE the right choice?

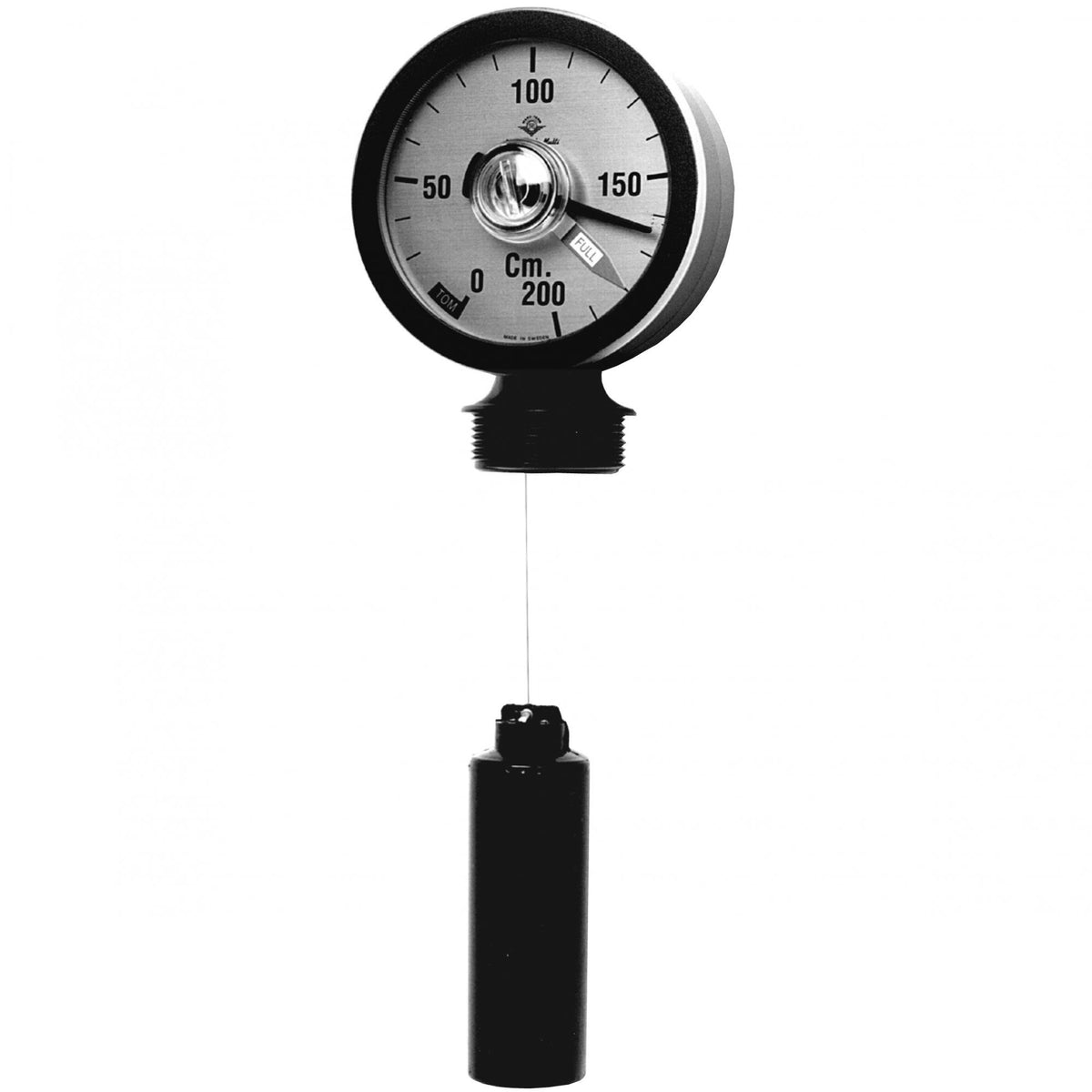

ADJUSTABLE OIL CLOCK GAUGE
This adjustable oil clock gauge is suitable for for indoor and outdoor tanks containing fuel, oil/diesel fuel, biofuel, biodiesel and motor oil. This clock level gauge is intended for use with open vented stationary tanks. The clock gauge can be adjusted to the desired height of any tank from 1m to 2m.
Specification:-
- Meter house 110mm dia in high quality UV resistant plastic
- Pressure tight meter house design prevents spread of oil odours indoors
- Corrosion resistant measuring mechanism in acetal plastic and spring motor made of stainless steel
- Durable float made of acetal plastic
- Resistant against fuel, oil/diesel fuel EN590), Biofuel FAME (EN14213), Biodisel FAME (EN14214) and motor oil
- Can be easily adjusted to the desired tank height by using a screwdriver
- Connection 1 1/2" BSP
- Graduated in cm
- Length adjustable from 1m to 2m
- Operating temperature range: -30/ + 50C
- Measuring accuracy: +/- 3% FS (of full scale value)
Technical data
Full specifications
| Reference | |
| SKU | RSK5635530 |
| EDEL code | DELIVERY |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
Technical documentation
Downloads & data sheets
