Product Description

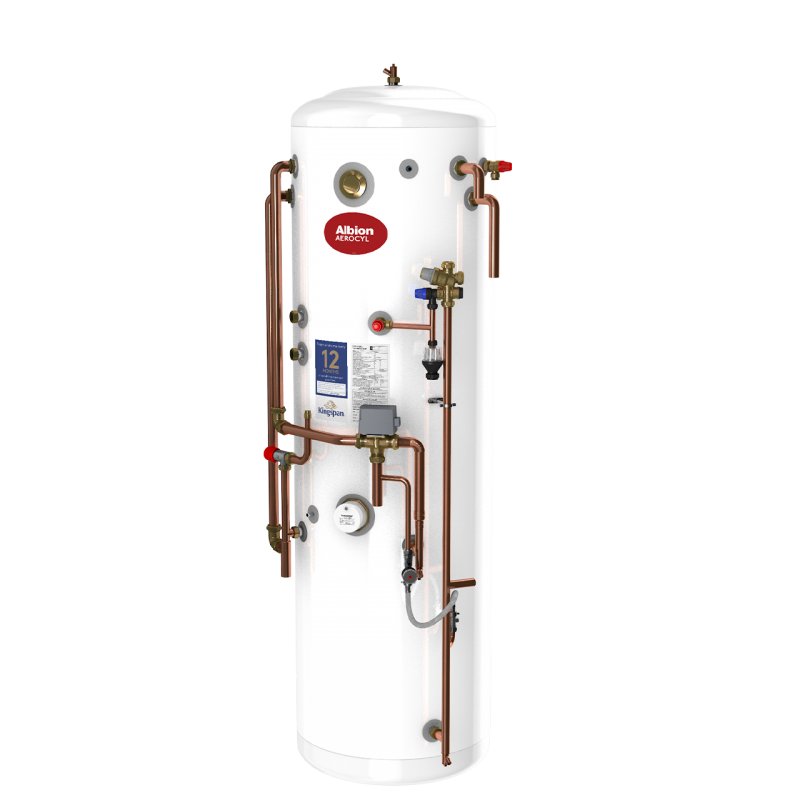

AEROCYL 210L HEAT PUMP HOT WATER CYLINDER WITH 50L INTEGRAL BUFFER TANK
Kingspan Albion Aerocyl Heat Pump hot water cylinders have been specifically designed for use in conjunction with a heat pump as the main source of energy. Featuring a purpose-designed coil, which allows maximum heat transfer of renewable energy into the stored water, the cylinders are suitable for use with a wide range of heat pumps available in the Ireland. This hot water cylinder now comes with an integral 50L Buffer tank.
Aerocyl Heat Pump hot water cylinders will provide you with both Domestic Hot Water and space heating (through traditional radiators or underfloor heating).
Where the input from a heat pump is not sufficient to heat the water to desired temperature, an electric immersion heater can be used to top it up.
Manufactured from Duplex stainless steel for excellent corrosion resistance, Aerocyl hot water cylinders feature energy efficient and environmentally friendly foam insulation for low standing heat loss and are encased in a tough, stove enamelled casing with white glossy finish, which can be wiped clean.
Features and Benefits:
- Space saving solution with half the footprint of a standard installation
- 210L capacity cylinder with 50L buffer tank
- 28mm coil heat exchanger for maximum heat transfer rated up to 32kW - Subject to delivering the required heat load to the coil through required flow rates and pipe sizing.
- Mains pressure hot water - (regulated up to 3 bar) for powerful showers
- High flow rates - ideal for multiple bathrooms, baths fill very quickly
- Fast reheat - high efficiency, hot water always available
- Very well insulated (50mm-thick environmentally friendly CFC and HCFC-free polyurethane foam lagging ) - low heat loss, economical to run
- Low maintenance - no hidden costs, no anode required
- Guaranteed# for 10 years on Duplex inner vessel against manufacturing defects and 2 years on parts
- Comes with unvented kit - includes acetal tundish, inlet control set, temperature & pressure relief valve, two port valve, immersion heater, expansion vessel and dual thermostat.
- Optional Buffer Kit containing circulator pump & cable, 28mm two port valve and 3kW immersion heater & O-ring.
- Optional Heat Pump Kit with flow regulator with sight glass and magnetic filter with 28mm isolation valves
Connections:
- 22mm Inlet control set cold feed
- 22m Hot water draw-off
- 3kW Immersion heater
- 3kW Immersion heater supplied separately as part of a kit
- Tee to potable expansion vessel
- Temperature & pressure relief valve
- 22mm Secondary return
- 10mm Dry stat pocket
- Circulating pump supplied separately as part of a kit
- 28mm Two port valve to heating system supplied separately as part of a kit
- 28mm Three port diverter valve
- Flow regulator supplied separately as part of a kit
- 28mm Flow - HP
- 28mm Return - HP
- Filling loop
- Balancing bypass valve
- Anti splash tundish
- Air release valve
- Return from heating system (behind pump)
Not suitable for well water.
If you would like more information on choosing the correct hot water cylinder for your needs please click the following link - Choosing The Correct Hot Water Cylinder
Product Specification
- Product Code: KING
- Shipping: Free Delivery
- Volume: 210ltr
- Dimensions: H:1899mm
- Diameter: 550mm
