Product Ref: AQM/40/10S/300

Water MDPE Free Delivery Single WRAS Approved Parts

Choose option:

from €2,071.43 ex VAT
(€2,547.86 inc VAT)

Product Description

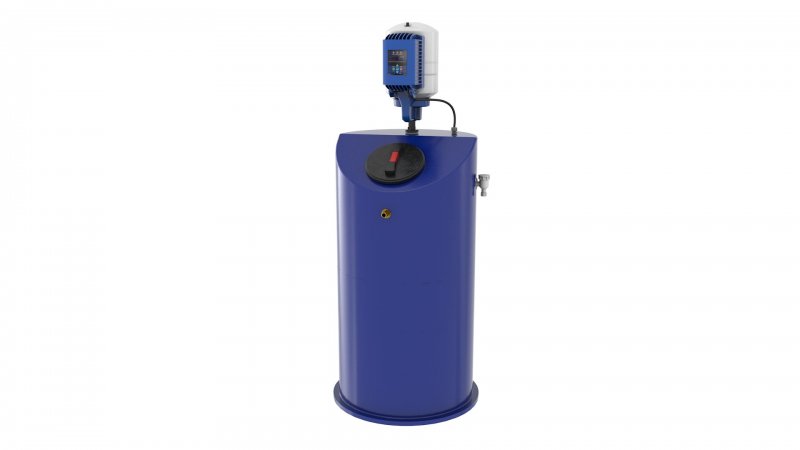

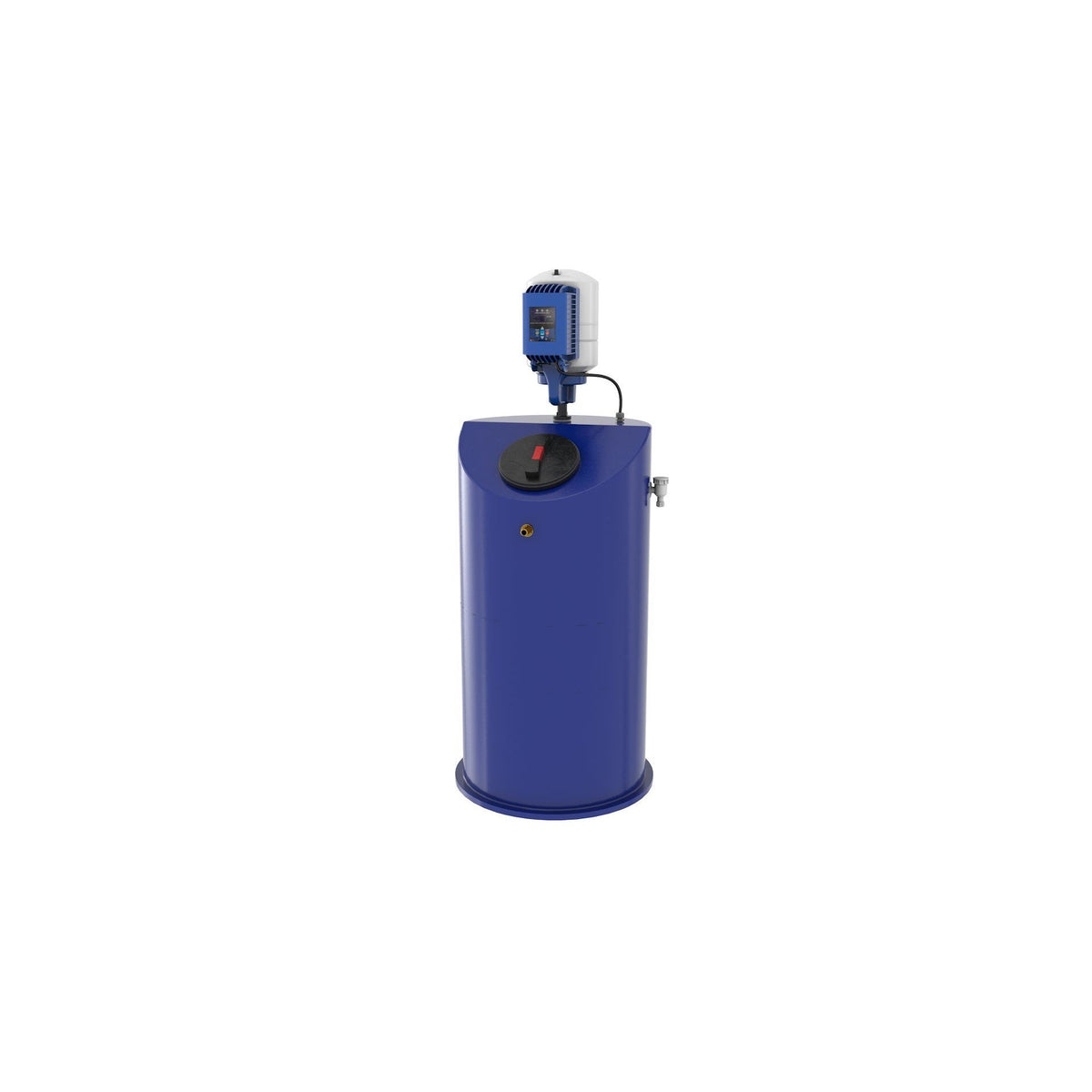

The Aquamaxx has been specifically designed to supply potable water for smaller properties with low water pressure and flow where space is at a premium. Areas such as apartments, cottages and townhouses would benefit the most from a compact system. The Aquamaxx system arrives pre-assembled allowing for a fast installation.

The Aquamaxx Compact fits into the space of a standard kitchen unit as they are similar in size to a washing machine so can be hidden away behind a cupboard door. The electronic controller will automatically start and stop the pump when a drop in pressure is sensed i.e. a tap or outlet is opened and closed.


  • Non-corrosive holding tank (WRAS approved material)
  • Pre-fitted WRAS approved fill valve
  • WRAS approved submersible pump
  • Integral overflow weir
  • Minimal installation requirement
  • Digital display flow controller
  • Dry run protection with auto restart (time delay)
  • WRAS approved inverter and vessel



  • Inlet: ½” BSP
  • Outlet : 1” BSP
  • Overflow: 22mm
  • Single Pump


Model Number Mid Curve Flow Mid Curve Pressure kW Rating Running Current (amp) Supply Voltage Inlet Outlet Overflow Size Dry Weight
FV40/10T 40l/min 4.5 bar 0.75 3.8 1 ph 230v 50 hz 28mm 1" 40mm 74kg
FV40/15T 40l/min 6.5 bar 1.1 5.2 1 ph 230v 50 hz 28mm 1" 40mm 76kg
FV80/15T 60 l/min 4.5 bar 1.1 5.4 1 ph 230v 50 hz 28mm 1" 40mm 78kg
FV80/20T 60 l/min 5.8 bar 1.5 6.1 1 ph 230v 50 hz 28mm 1" 40mm 80kg


All Aquamaxx booster sets use the IDROGO submersible pump which comprises of a stainless steel outer casing and glass fibre reinforced PPE impellers. The IDROGO electric pump is reliable and corrosion resistant. This pump is suited to residential and light commercial applications and is easy to service and maintain.


  • PPE+PS impeller with glass fibres
  • Stainless steel 431 shaft (EN 1.4057)
  • WRAS approved
  • AISI 304 outer casing
  • Carbon/ Ceramic/ Silicon/ NBR mechanical seal

Product Specification

  • Product Code: DPT
  • Fuel Type: Water
  • Material: MDPE
  • Shipping: Free Delivery
  • Twin or Single: Single
  • WRAS Approved: WRAS Approved Parts
  • Volume: 300ltr
  • Weight: 74.000kg, 76.000kg, 78.000kg, 80.000kg
  • Dimensions: H:1720mm
  • Diameter: 610mm

Delivery Terms

Kingspan Tanks - Tail-lift deliveries are available for most tanks up to 2,000 Litre capacities for kerbside delivery.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Klargester Tanks  - All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.
HIAB off-loading is available at extra cost, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Harlequin Tanks  - Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities for kerbside delivery subject to availability.
It is the responsibility of the customer to inform us, if off-loading equipment is required. undertakes to attempt to fulfill all orders within a maximum of 7 working days of order acceptance, unless advised otherwise. In the event that any order is delayed, will not be responsible for any consequential loss or damage that this delay may cause.

Smaller items (including most accessories and consumables) will normally be despatched by courier.
Larger items (including all storage tanks) will normally be delivered by carrier.

Please note that for all items delivered by carrier, normally a truck + 40ft trailer, it is the customer's responsibility to ensure adequate vehicular access and to provide suitable offloading equipment, where required. Please notify us, if this might pose a problem and we will endeavour to facilitate your request.

Returns Information


In accordance with Irish and European Union consumer laws, you have seven days after receipt of order to cancel the order in its entirety or any part thereof, providing the goods are in a re-saleable condition. Should you wish to cancel any order, you must first contact for a ‘Returns Authorisation Number’.

Please call 051 351325 or e-mail

After the Returns Authorisation Number has been issued, we will make arrangements with you for the goods to be returned. If you wish to arrange the collection of the goods, please note that a carriage and administration charge will apply, which will not exceed 35% of the gross value of the goods.

Upon return of the cancelled goods to and verification that they are in a re-saleable condition, we will refund the value of the goods, less any collection and administration charges, within 28 days.


If you believe that products you have purchased from are defective, please report this immediately to by e-mail or call 051 351325.

If they are within the manufacturer’s guarantee period, we will arrange with the manufacturer to replace or repair the goods at the manufacturer’s discretion and consistent with their guarantee.
Where it is necessary to inspect the goods on site and an inspection proves the fault is neither the fault of, nor the product manufacturer, an inspection charge will apply, which will be advised by the manufacturer prior to site inspection.

Please note that where guarantees are available in excess of those required by law, these are provided at the discretion of the product manufacturer and not Additionally, will not be liable for any claims for consequential damage or loss.
