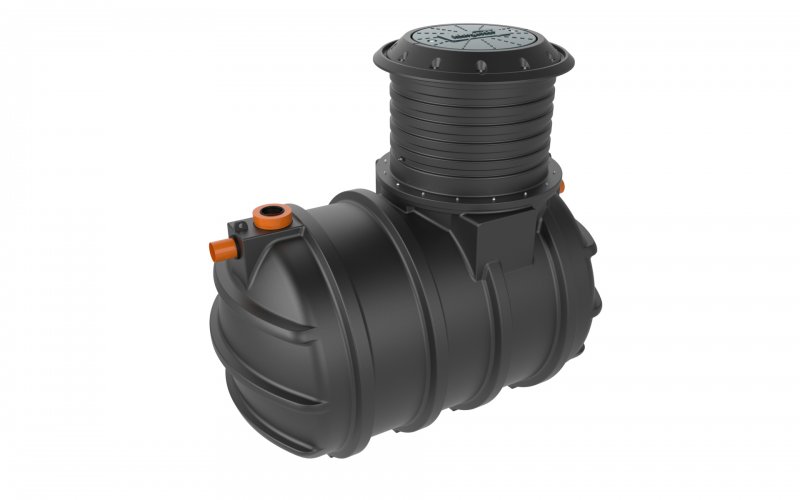

BioTec + Sewage Treatment Plant (6 POP)

Product Description

BioTec + Sewage Treatment Plant

The BioTec+ is our most economically priced plant in the Klargester range and offers customers all the benefits of a Klargester product without the price tag. With flexible installation options to suit a variety of domestic sites, low visual footprint and suitable for shallow dig applications, the Klargester BioTec+ is a cost efficient choice for your domestic wastewater treatment solution.

Applications:

Single & multiple homes
Light industrial premises
Small offices
Farms and barn conversions

Product Features:

98.5% improves effluent quality - BOD
CE thrid party tested to SR66:2015
Easy to install and operate
Easy install
Cost efficient
Low profile cover
Lightweight, no crane needed
Low running costs

BioTec+	Model	BioTec+ 2	BioTec+ 3	BioTec+ 4	BioTec+ 5	BioTec+ 6	BioTec+ 7	BioTec+ 8	BioTec+ 9
Population Equivalent	Unit	6	9	12	16	20	25	35	50
Daily Flow	m3/d	0.90	1.35	1.80	2.40	3.00	3.75	5.25	7.50
Daily Load	kg BOD5/d	0.36	0.54	0.72	0.96	1.20	1.50	2.10	3.00
Daily Flow Q10	m3/h	0.09	0.135	0.18	0.24	0.3	0.375	0.525	0.75
Measurements
Inlet invert (Gravity / IPS)	mm	645 -1400 / 845 - 1400	730 - 1400/ 930 -1400	500-2000 / 1000-2000	500-2000 / 1000-2000	500-2000	500-2000	500-2000	500-2000
Discharge option		Gravity / IPS	Gravity / IPS	Gravity / IPS	Gravity / IPS	Gravity	Gravity	Gravity	Gravity
Outlet invert (Gravity / IPS)	mm	745 - 1500/500 - 1165	830 - 1500 / 580 - 1050	600-2100 / 500	600-2100 / 500	600-2100	600-2100	600-2100	600-2100
Diameter	mm	1540	1690	1420	1920	1920	1920	1920	1920
Length	mm	2480	2480	4274	3238	3963	4752	6640	9315
Installation depth (Gravity / IPS)	mm	1995-2750 / 2115 - 2780	2250 - 2920 / 2370- 2960	1835-3335 / 2335-3335	2250-3750 / 2750-3750	2250-3750	2250-3750	2250-3750	2250-3750
Inlet pipe work	mm	Ø110	Ø110	Ø110	Ø110	Ø110	Ø110	Ø160	Ø160
Outlet pipe work (Gravity / IPS)	mm	Ø110 / Ø50	Ø110 / Ø50	Ø110 / Ø50	Ø110 / Ø50	Ø110	Ø110	Ø160	Ø160
Material Construction	MDPE / GRP	MDPE	MDPE	GRP	GRP	GRP	GRP	GRP	GRP
Unit Weight (Gravity / IPS)	kg	175 / 185	195 / 210	260 / 290*	350 / 360*	405	460	690	890
Note:	* Tank weight based on 500mm Invert

Product Specification

Product Code: 1014430
Fuel Type: Sewage
Material: MDPE
Shape: Underground
Shipping: Free Delivery
Weight: 175.000kg, 185.000kg
Dimensions: L:2480mm
Diameter: 1540mm
