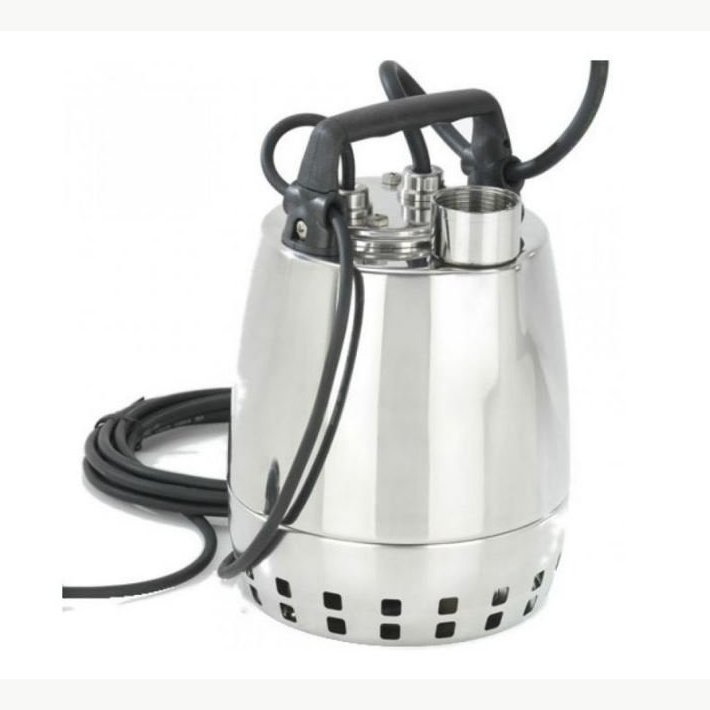

Calpeda GXV 25-10 Submersible Dirty Water Pump

Product Ref: GXV 25-10

Grey Water, Sewage Grey Water, Sewage 2 Year Free Delivery

Choose option:

updown
from €486.80 ex VAT
(€598.76 inc VAT)

Product Description

Calpeda GXV 25-10 Submersible Dirty Water Pump

The Calpeda GXV range is a submersible dirty water and drainage pump made from stainless steel with a vertical delivery port. Minimum dimension and high levels of performance, for use in many different applications, head up to 10m and flow rates up to 220 Litres/min

Calpeda GXV Submersible dirty water Pumps can be used for the following applications:

  • For clean or slightly dirty water, containing solids up to 25 mm grain size.
  • Particularly suitable for liquidor with filamentous particles.

Construction Details:

  • Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
  • GXV(25): with free-flow (vortex) impeller.
  • Motor cooled by the pumped water passing between the motor jacket and the external jacket.
  • Handle in polypropylene.
  • Double shaft seal with oil chamber.
  • 1 1/4" BSP Female Discharge Port.

Features

  • G1 1/4" vertical, upward delivery port for installation in small pits
  • Easy adjustment of the float switch to allow adjustment of start/ stop pump levels
  • Suction strainer with a double row of holes, for extra safety against clogging allowsthe passage of solids up to 25mm
  • Handle in polypropylene
  • Easy inspection of the capacitor area
  • Shaft in chrome-nickel stainless steel
  • Motor cooled by the pumped water passing between the motor jacket and the external jacket
  • Ceramic stainless steel shaft sleeve
  • Oil chamber
  • Impeller in chrome-nickel stainless steel
  • Double shaft seal with oil chamber separates the motor from the water and provides further protection against accidental operation when dry

Operating conditions

  • Liquid temperature up to 50° C.
  • Maximum immersion depth: 5 m.
  • Minimum water level with float: GXV = 130 mm.
  • Minimum water level manual operation: GXV = 30 mm.
  • Continuous duty.

Motor

  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
  • GXV: three-phase 230 V ± 10%; three-phase 400 V ± 10%;
  • GXVM: single-phase 230 V with float switch and thermal protector.
  • Incorporated capacitor.
  • Insulation class F.
  • Protection IP X8 (for continuous immersion)
  • Double impregnation humidity-proof dry winding.
  • Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41.

gxv-curve

Product Specification

  • Product Code: CAL
  • Fuel Type: Grey Water, Sewage
  • Guarantee: 2 Year
  • Outlet Size: 1 1/4"
  • Shipping: Free Delivery
  • Weight: 6.800kg, 7.300kg
  • Dimensions: H:337mm
  • Diameter: 176mm
