CARBERY 6000L FUEL POINT PREMIUM
CARBERY 6000L FUEL POINT PREMIUM
Carbery Fuel Points are HVO compatible.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Carbery Plastics Ltd
What makes this PREMIUM the right choice?

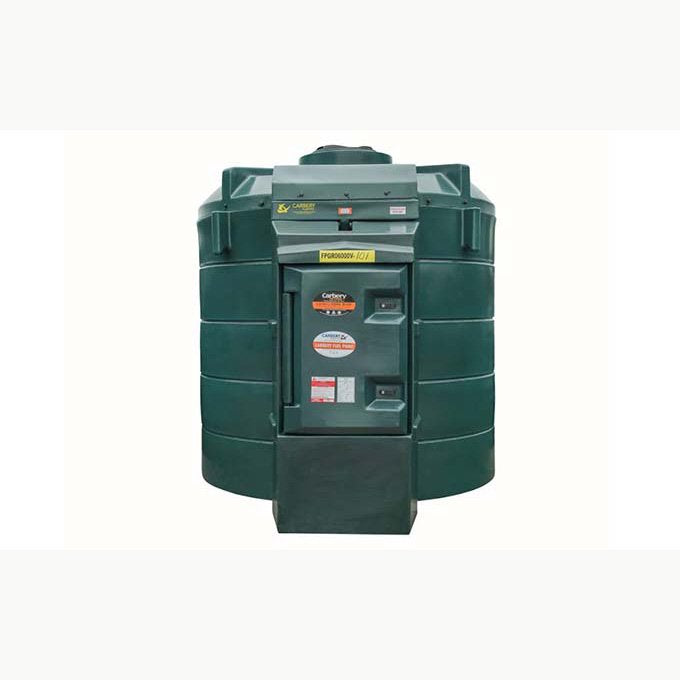

CARBERY 6000L FUEL POINT PREMIUM
The 6000 Litre Carbery Vertical Bunded Diesel Fuel Point Premium tank provides forecourt style refuelling with Bunded Tank & filtering to ensure convenient refuelling of cars, trucks and machinery at your premises. Carbery Fuel Points are HVO compatible.
Benefits:
- Low Maintenance UV stabilised for protection against the damaging effect of sunlight
- Manufactured from premium quality corrosion resistant material
- EN13341 Compliant
- OFCERT approved
- Manufactured to ISO Standards
- All Carbery Bunded Fuel Points are supplied complete with a conditional 10-year warranty against manufacturing, material and design defect.
Comes With:
- Diesel resistant suction pipe with mesh strainer
- Non-return valve
- 56 LPM 230v AC fuel pump
- 5m fuel resistant delivery hose
- Hydrosorb 10 micron integrated water / particulate filter
- Forecourt standard (24mm) trigger nozzle with automatic shut off
- Lockable inspection points
- Lockable 50.8mm (2”) fill Point
- Lockable equipment access
- Overfill Equipment Device
- Apollo Contents Gauge & Spill Detector
- Flow Meter with resettable batch Totaliser
- Overhead Light
- Nominal Capacity: 6025 Litres
- Brim-full Capacity: 6342 Litres
- Inlet Diameter: 50.8mm (2")
Optional:
- Fuel Management System (please contact us re requirements)
Technical data
Full specifications
| Physical | |
| Capacity | 6025 L |
| L × W × H | 270 × 230 × 240 cm |
| L × W × H (mm) | 2704 × 2300 × 2400 |
| Empty weight | 412 kg |
| Construction | |
| Material | MDPE |
| Reference | |
| SKU | FPGR6000V-100 |
| EDEL code | EDELP00002052 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
