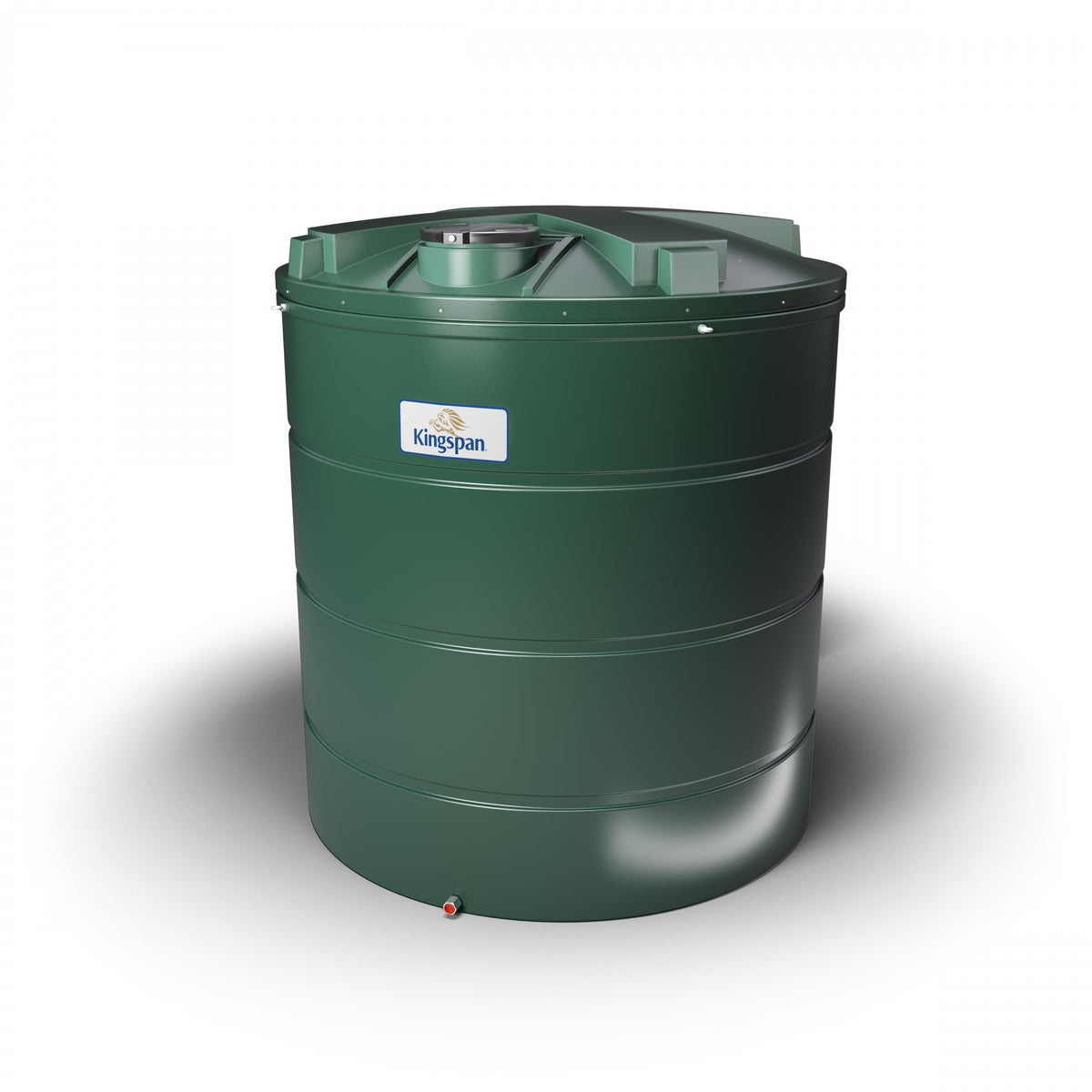

KINGSPAN 9200 BUNDED OIL TANK

Kingspan 9200 Bunded Oil Tank
9200L bunded oil tank with 110% secondary containment. Required for most Irish domestic and farm oil storage — fully compliant with IS:293.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Kingspan Energy
What makes this Tank the right choice?
KINGSPAN 9200 BUNDED OIL TANK
Whether you are replacing an old tank or installing a brand new heating system, you need to be sure you are using the best. Atlas oil tanks are strong, attractive tanks at an affordable price. Atlas oil tanks will give you security and many trouble free years of service, an oil tank you can install and forget about.
Comes with Watchman Sonic Advanced Tank Monitor and a 10 year guarantee.
- 18" Manlid cover
- 4" (100mm) Inspection Access complete with Plastic Screw Cap
- 1" Bottom outlet
- 2" Vent on inner tank
- Watchman Sonic Advanced Tank Monitor
- Spillstop overfill prevention
- Bottom outlet fitting kit
- 10 year guarantee
- Footprint: 2510mm Dia
- Compatible with HVO (Hydrotreated Vegetable Oil)
Please ask about lead times prior to purchasing.
*DELIVERY TERMS:
Tail-lift deliveries are available for most tanks up to 2,000 Litre capacities.
All tanks greater than 2,000 Litre capacities are delivered on 45ft. Flat-bed Articulated Trailers.
HIAB off-loading is available at extra cost for deliveries of tanks above 2,000 Litre capacities, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.
Technical data
Full specifications
| Physical | |
| Capacity | 9200 L |
| Diameter | 2510 mm |
| Empty weight | 450 kg |
| Construction | |
| Material | MDPE |
| Reference | |
| SKU | 1061158 |
| EDEL code | DELIVERY |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
Technical documentation
Downloads & data sheets
Product video
See the Tank in action
Verified customers
What buyers say
Customers also bought
You may also need
Still not sure which tank you need?
Our specialists have advised thousands of Irish customers. Free advice, no obligation.
