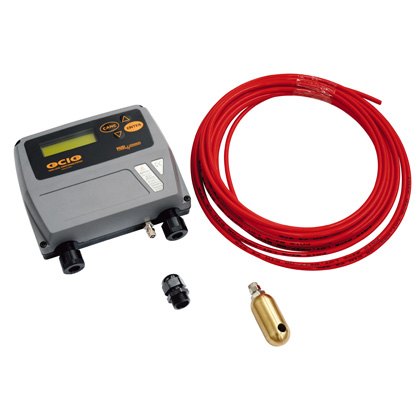

OCIO PIUSI LEVEL MONITOR

OCIO PIUSI LEVEL MONITOR

OCIO is a system for monitoring the fluid level inside tanks. This fuel management system detects the static pressure generated by the fluid height by means of a tube inserted into the tank and displays the fluid level or volume.

The system consists of:

• A control unit for displaying the level and managing the system. The unit is equipped with an intuitive, complete software and permits the connection of two alarm or lock devices.
• A tube for detecting static pressure: The tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom.

Main advantages:

• Continuous metering
• Suitable for diesel, water, windscreen, or urea (depending on model)
• Indication in height, volume and filling percentage
• Maximum and minimum level alarms
• High accuracy +/- 1%
• PC link up option
• Depending on the set alarm levels, the control unit activates or deactivates the contact by acting as a remote switch for starting the alarms or cutting power to the connected equipment
• Maximum measurable height - 4m
• IP55 Rated
• %, litre and mm readings
• ½” M BSP balance chamber fitting
• Supplied with two relays for connection to other equipment
• Probe tube length - 10m

The software is used to:

• Set tank dimensions and type
• Define indication level
• Define alarm levels
• Calibrate the instrument
• Define measurement unit
