PIUSI EX50 ATEX PUMP
PIUSI EX50 ATEX PUMP
Durable pump for reliable fluid transfer in domestic, agricultural and industrial environments. Low maintenance, high performance.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Rotech Ltd
What makes this PUMP the right choice?

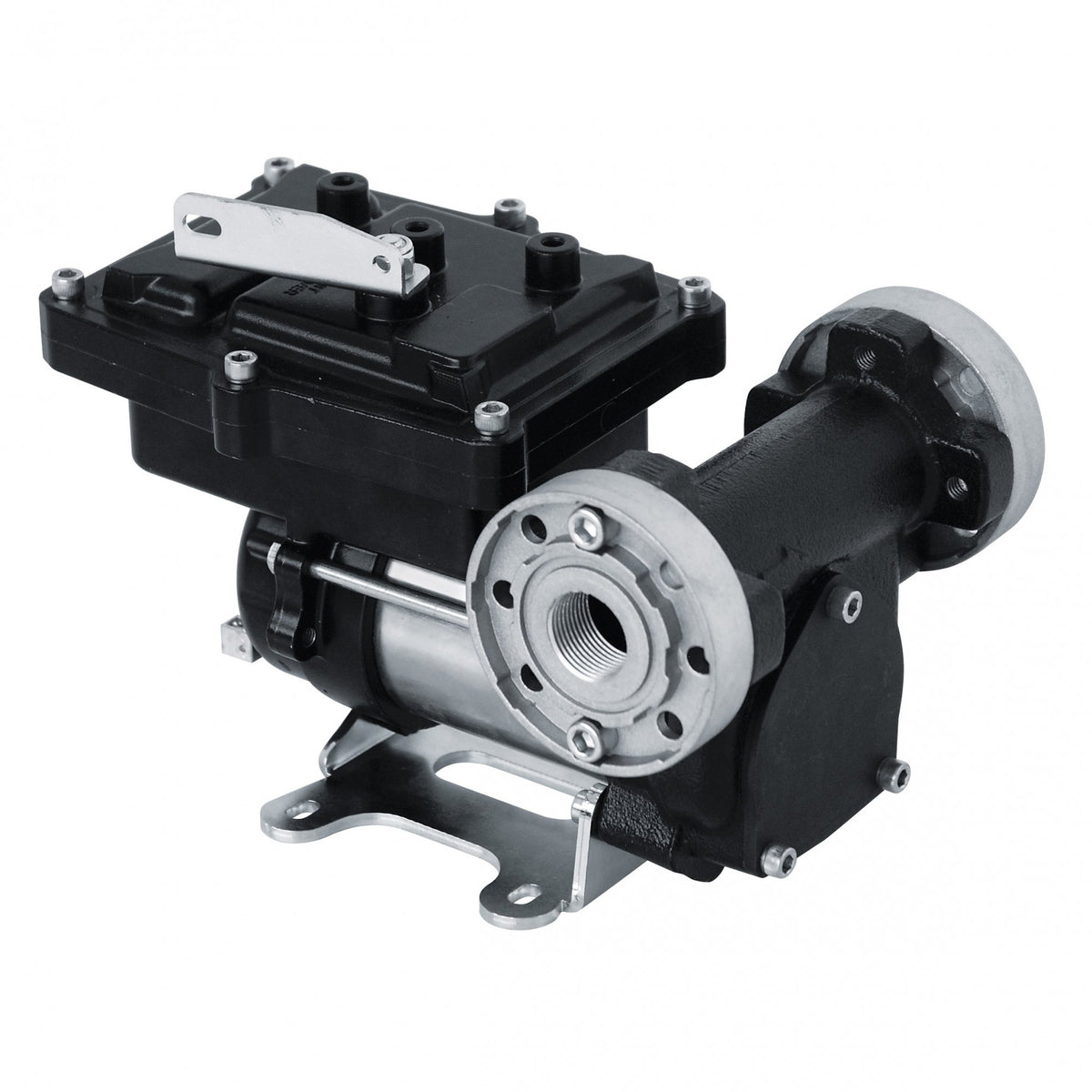

PIUSI EX50 ATEX PUMP
The Piusi EX50 Pump satisfies the strict ATEX/IECEx directive concerning the use of materials in potentially explosive atmospheres. Designed for the mobile and static transfer of petrol, kerosene and diesel in a zone one environment, these ATEX pumps are explosion proof. This petrol transfer pump has a sturdy, cast iron body, and thanks to its quality manufacturing has a long life span. Incorporated in the 230 and 12 volt fuel transfer pump body is an integrated bypass valve.
These ATEX pumps are available in mains or low voltage
Specification
- For use with diesel, kerosene and gasoline
- Explosion proof
- Sturdy and compact structure
- Cast iron body
- Available in 12 volt and 230 volt
- Duty cycle 30 min on / 60 min off
- Flow-rate of 50 l/min
- Reduced absorption to ensure a long service life
- 1' BSP Inlet
- Flanged components: pump, meter and filters can be installed or replaced without the use of sealant, making connection quick and safe
- Bypass valve
- Anti-noise filter (electromagnetic compatibility EMC)
- Thermal protection
- Non-return valve and pressure relief valve

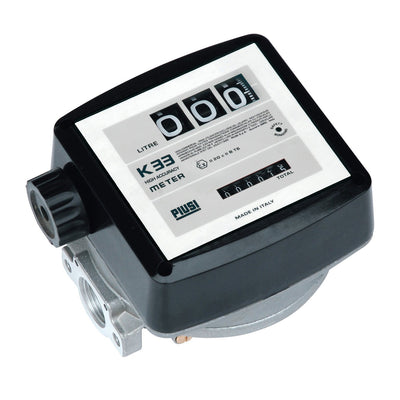

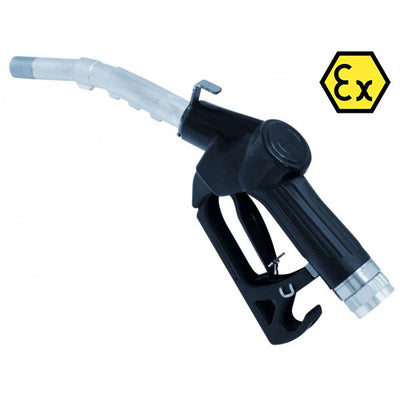

Optional extras: Atex K33 Flow meter and Atex 4m Hose and Nozzle
Technical data
Full specifications
| Physical | |
| Empty weight | 7 kg |
| Reference | |
| SKU | F00371000 |
| EDEL code | EDELP00195357 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
