PIUSI VISCOMAT 90 LUBE OIL PUMP
PIUSI VISCOMAT 90 LUBE OIL PUMP
Durable pump for reliable fluid transfer in domestic, agricultural and industrial environments. Low maintenance, high performance.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Rotech Ltd
What makes this PUMP the right choice?

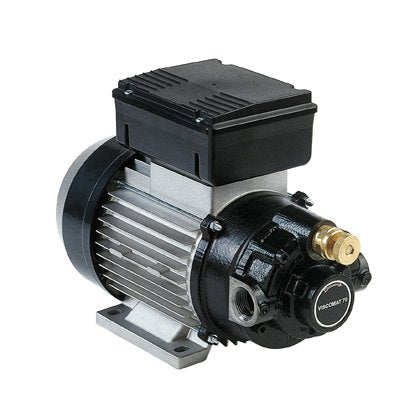

PIUSI VISCOMAT 90 LUBE OIL PUMP
Electric vane oil pump for transferring medium-viscosity oils, with high flow-rate.
The Piusi Viscomat 90 Vane oil transfer pump is an ideal solution for the transfer of large amounts of oil at medium pressure from one tank to another. This Piusi pump also maintains good flow rates when used in high pressure systems, where the oil pump supplies hose reels for fixed oil dispensing. These oil transfer pumps are reliable and high quality pumps, which have a high suction, smooth flow and operate at less than 70dB.
Performance:-
- Flow-rate 50 l/min
- Pressure up to 5 bar
- Continuous operation
- Noise level less than 70dB
- 230 volt Single Phase
- 1' BSP
- Viscosity up to 500cSt
- Self priming pump
- Maximum fluid temperature of 70c
- 1' threaded connections with NPT Flanges
- Protection Grade: IP55
- Adjustable Bypass Valve
- Continuous Running
Technical data
Full specifications
| Physical | |
| Empty weight | 14 kg |
| Reference | |
| SKU | F00303M00 |
| EDEL code | EDELP00195357 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
