Product Description

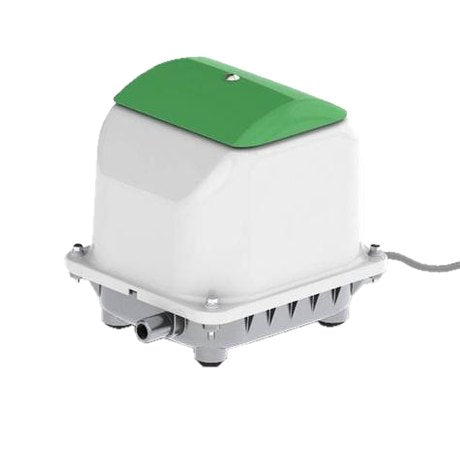

SECOH JDK-S-80 SINGLE SERIES BLOWER

The JDK models are a direct replacement of the EL series of blower - these also feature up to 30% less energy consumption as well as being more compact than the EL series.

  • Long life expectancy

All parts of the motor are combined into one single construction. The combination of a compact and light construction mixed with the uncomplicated mechanism guarantee a long and reliable period of operation.

  • High degree of efficiency

The principle of electromagnetic oscillation, which practically has no mechanical friction, minimises power consumption and provides a high degree of efficiency.

  • Oil-free operation

The oil-free operation guarantees a smooth air flow and no mess.

  • Vibration & Noise Free Air Flow

The Secoh parts are separated with vibration-isolating rubber and has bespoke pump chambers with a muffler integrated in the tank base which provide a pulsation free air flow.

  • Robust

The Secoh blowers are rainproof and weatherproof. However, they should not be exposed to direct sunlight, rain or snow.

  • Service kits

There are universal service kits available. These are vacuum-packed in aluminium foil for better and longer life/ storage.



APPLICATIONS

  • Water treatment
  • Ponds & Domestic applications
  • Medical and health technology
  • Aeration of fuel cell stacks
  • Aqua-air-lights and design pillars


Technical:

  • Max Flow: 75 Litres per Minute
  • Optimal Operating Pressure: 0.20 Bar
  • Connector Size: 19mm
  • Sound level (at 1.5m): 40dB
  • Voltage: 230 VAC

Please note: The Secoh S-series air blowers come with a standard EU plug these can be removed without effecting warrenty



TANK SERVICING

Why does my system need serviced?

  • It’s important that your sewage treatment plant or septic tank system is emptied and maintained regularly to continue operating optimally.
  • Poorly performing systems can cause serious health hazards as well as local pollution risks.
  • Recent Building Regulations (Part H 2010 – BS EN 12566) state that regular emptying and maintenance of small sewage treatment plants must be undertaken by the homeowner at least once per year, or as per the manufacturer’s guidelines.
  • As a homeowner, you must also ensure that your  system remains in good order and replace it when necessary.
  • We do recommend that you keep a detailed log of when your system is inspected, maintained, emptied or serviced as you may need these details in future.
  • Our treatment plant service includes a full check to ensure everything is in perfect working order.
  • Our team can be reached on helpingyou@kingspan.com or 033 240 6868

Product Specification

  • Product Code: KSP
  • Weight: 11.500kg
  • Dimensions: L:254mm W:177mm
