STRAIGHT FILL POINT KIT
STRAIGHT FILL POINT KIT
Complete installation or conversion kit with all components required. Straightforward fitting — full instructions included.
Estimate delivery costs
Your Eircode lets us show an accurate delivery cost before checkout.
Centre Tank Services Ltd
What makes this KIT the right choice?

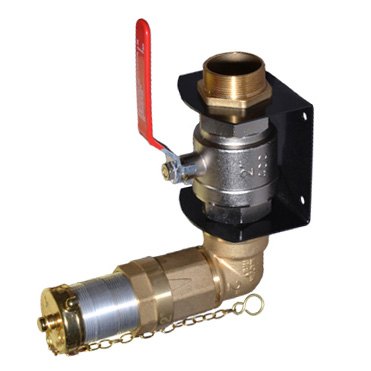

STRAIGHT FILL POINT KIT
Fuel tank fill points are designed to allow the easy filling of large static tanks from ground level or from a remote location. These fill points are designed primarily for tank manufacturers and custom fabricators, and come complete with mounting brackets and drip caps.
Terminating in a 2' male thread, the straight fuel tank fill point is made up of a four hole wall/cabinet mounting bracket, lever ball valve, non return valve, and an aluminium fill point nipple with a flat face, to allow a good tanker fitting seal.
Specification:
- For use with diesel, kerosene and oil
- 2' male thread fill point
- C/w mounting brackets and drip cap
- Brass fill cap to stop dripping and debris from entering
- Tank fitting inlet -2' M BSP
- Outlet - 2' M BSP
- Length (mm) - 275
- Height (mm) - 270
Technical data
Full specifications
| Reference | |
| SKU | FP001 |
| EDEL code | EDELP00182267 |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
