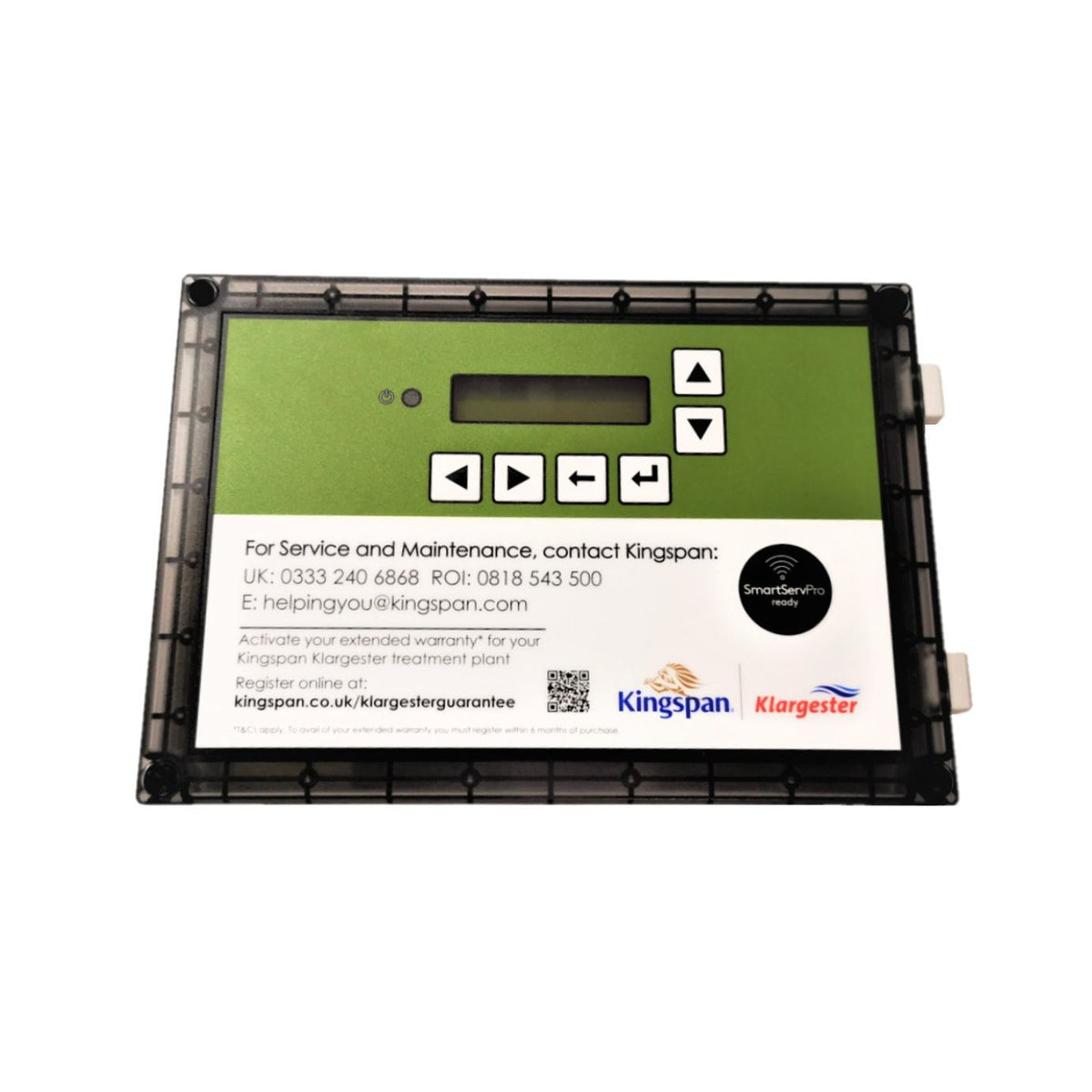

Treatment Tank Control Panel (Smart Range)
This New Style Klargester Control Panel for waste water tanks with digital display continuously monitors the internal timetables and operates the appropriate pump/motor outputs according to a timetable entry. The status is shown on the display. The current time continues to be updated internally by battery backup when the mains fail, and the control unit continues normally upon mains being restored.
- Dimensions: 255mm (W) x 180mm (H) x 88mm (D) Ingress Protection: IP65
- Operating temperature: -20°C … +50°C
- Power Source - 230VAC ±10% 50Hz
- Power Consumtion (Unit Only) - 6.4W, 10.1VA, cos φ = 0.63
This Panel replaces the Kingspan Panel (P.No. 010086 - Green Panel). The old beacon (P.No. 010332) will have to be replaced with the New Beacon (P.No. 1009254)
Technical data
Full specifications
| Reference | |
| SKU | 1002510 |
| EDEL code | DELIVERY |
Irish regulations
Installation & requirements
OFTEC regulation
All domestic oil tank installations in Ireland must be carried out by an OFTEC-registered technician. The tank must conform to IS:293 and be sited in accordance with IS:820.
Site requirements
The tank must stand on a level, load-bearing concrete base minimum 100 mm thick, extending 300 mm beyond the tank footprint on all sides. Ground must be clear of vegetation.
Bunding requirements
Bunded tanks are required within 10 m of a watercourse or drain. Secondary containment must hold 110% of the inner tank capacity. Check local planning conditions before installation.
