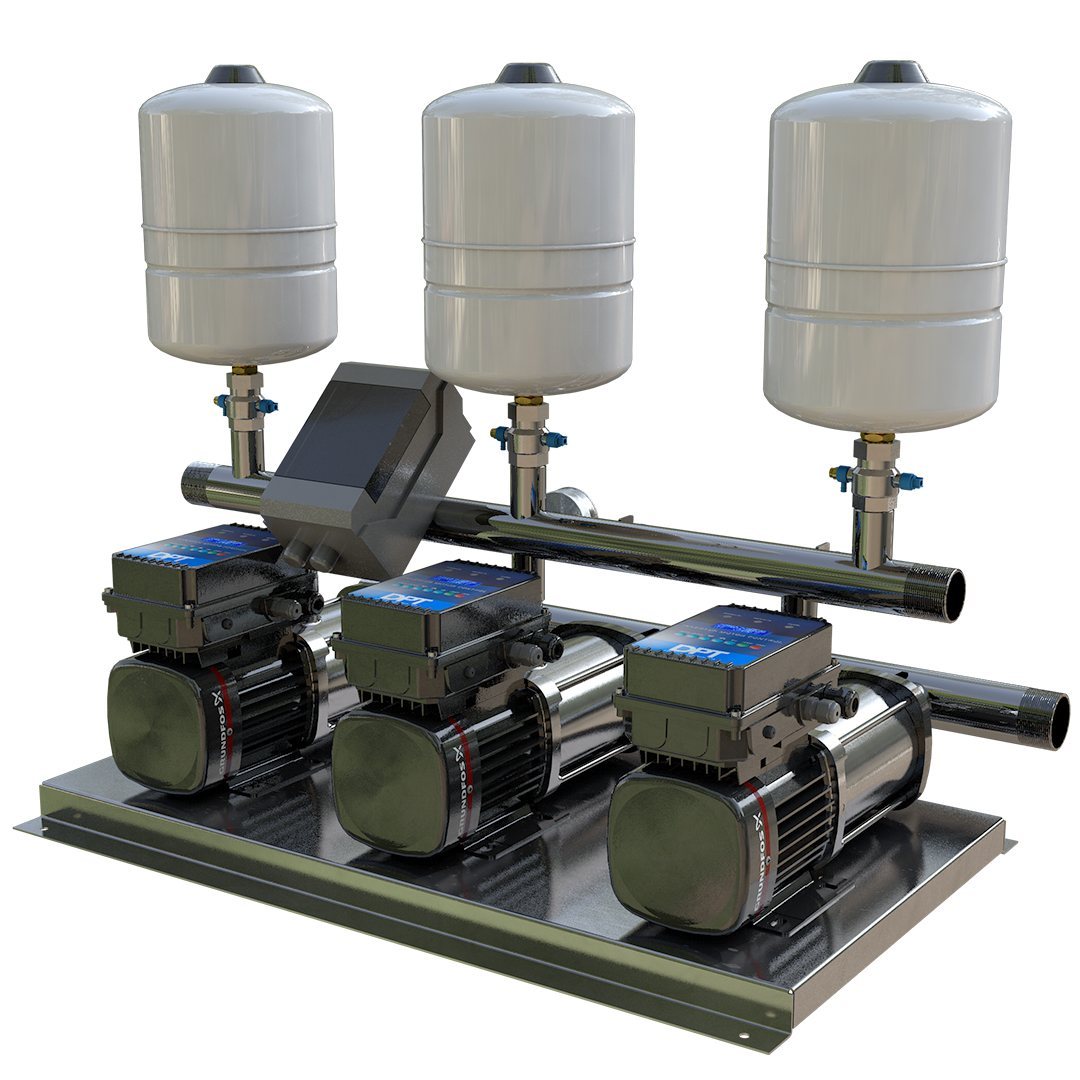

Vari-Rs Featuring Grundfos Triple booster Pump With TD Variable Speed Controller 375L/MIN @ 4.5 BAR

Vari-Rs Triple 10-3 Grundfos booster Pump With TD Variable Speed Controller

375L/MIN @ 4.5 BAR

The WRAS approved Tanks Direct Vari-RS Grundfos variable speed cold water booster pump with TD Variable speed controller is designed to increase the pressure of water services within a building where the existing incoming main is insufficient. The pressure boosters are suitable for private water supply applications, particularly where constant pressure is required or where there are large fluctuations in demand.

The booster set is available in single/twin/triple pump configurations to provide a wide range of flows and pressures, meeting your specific application requirements. Each booster set features industry-leading Grundfos horizontal pumps paired with motor-mounted inverter(s) packed with technology and features.

The system comes fully assembled with valves, manifolds (twin and triple sets only), transducers, pump(s), variable speed inverters, and mounted on a steel baseplate as standard.

Key Features

• WRAS Approved
• Can Run as Duty/Assit or Duty/Standby
• 304 Stainless steel WRAS approved Grundfos pumps
• Simple setup and management
• Variable speed inverter
• Dry run protection
• 2no PWB 8 litres WRAS approved pressure vessel
• Glycerine filled pressure gauge.
• Tested and programmed before dispatch.
• Stainless-steel Fittings
• Air-cooled inverters
• Available in single, twin, and triple set variants

Applications:

• Commercial Sites
• Multiple residential properties
• Industrial sites
• Agricultural & farming
• Manufacturing

Specification:

• Pump Configuration: Triple
• Mid-curve Flow rate l/m: 495
• Mid-curve Pressure (bar): 3.8
• 2 1/2" connections

You can also find the table below for the flow rate and pressure of each pump so you can easily add this into the title of each pump:-

• Product Code: DPT
• Fuel Type: Water
• Outlet Size: 2 1/2"
• Potable: Yes
• Power: Mains Powered
• Shipping: Free Delivery
• WRAS Approved: WRAS Approved
• Dimensions: L:686mm W:900mm H:920mm
