Which Klargester Fuel or Oil Separator?

Klargester's range of fuel and oil separators, designed and manufactured in Ireland, ensure high performance across a range of applications. Surface water drains normally discharge to a watercourse or indirectly into underground waters via a soakaway. Contamination of surface water by oil, chemicals or suspended solids can cause these discharges to have a serious impact on the ground water. Oil separators are installed on surface water drainage systems to protect receiving waters from pollution by oil, due to minor leaks from vehicles and plant.

Separators are used in many applications such as:

Garage Forecourts
Car Parks
Workshops
Supermarket / Shopping Centres
Distribution Warehouses
Car Wash Bays
Scrap Yards
Car Garages
Fuel Storage Sites
Distribution/Haulage Centres
Waste Transfer Sites
Business/Commercial Parks/Industrial Estate

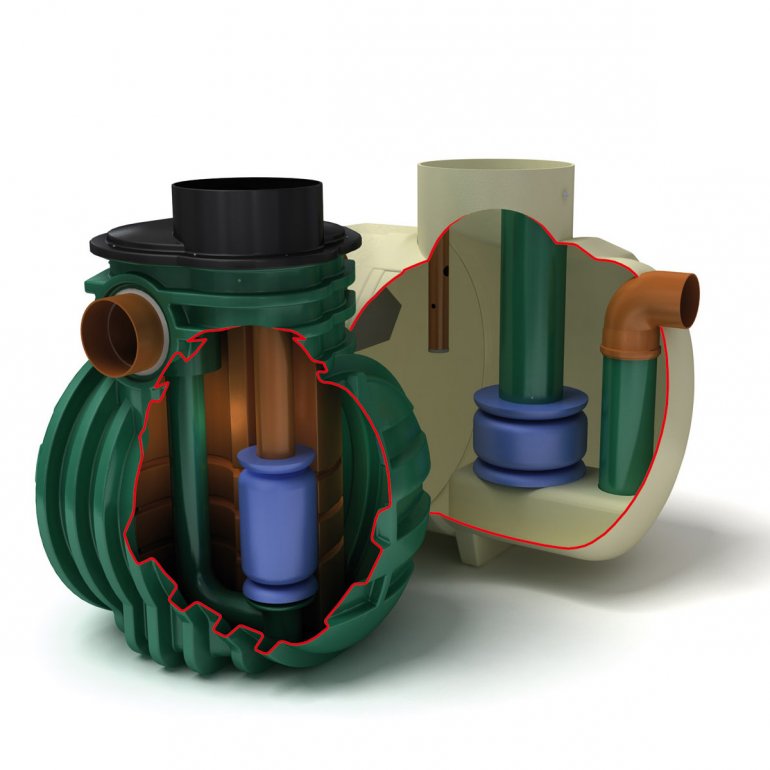

Full Retention Separators:

Klargester full retention separators have been designed for use in high-risk areas, such as roadways, fuel depots and car parks. These separators treat the full flow of surface water in these areas and offer a reliable oil and silt separating solution.

Product Highlights

Can treat the equivalent flow of 65mm/hr rainfall
This full retention interceptor unit is available in over 20 different specifications
Designed for easy installation, saving you time and money
Third-party certified to EN858 - 1 for peace of mind
Fitted inlet/outlet connections
Vent points within necks
Maintenance from ground level
GRP - PE Model construction - high strength and durability
CE-marked

To see our full range of Full Retention Separators please click here.

Bypass Separators:

Klargester bypass separators are used when it is considered an acceptable risk to not provide full treatment for very high flows, such as, where the risk of a large spillage and heavy rainfall occurring at the same time is small. Typical applications include surface carparks, roadways and lightly contaminated commercial areas.

Product Highlights

Engineered to achieve a concentration of less than 5mg per litre
Treats the ‘first flush’, which is approximately 10% of the peak flow
Can be maintained from ground level
Light and easy to install, saving you time and money
GRP or rotomoulded construction (subject to model)
Inclusive of silt storage volume
Fitted inlet/outlet connectors
Vent points within necks
Extension access shafts for deep inverts
CE-marked

To see our full range of Bypass Separators please click here.

Forecourt Separators:

Klargester Petrol Forecourt Separators are designed to handle potential spillages from refuelling and delivery. All models comply with safety and environmental requirements.

Product Highlights

Can be fitted to existing tanks on your site or forecourt
Light and easy to install, saving you time and money
Inclusive of silt storage volume
Fitted inlet/outlet connectors
Vent points within necks
Extension access shafts for deep inverts
Maintenance from ground level
Oil storage volume
Coalescer
Automatic closure device

To see our Forecourt Separators click here

Washdown Separators and Silt Traps:

Designed for use in car washes and other cleaning facilities, the wastewater passes through our Kingspan Klargester washdown and silt traps where it is retained long enough to allow solids to sink to the bottom and remain in the tank.

Product Highlights
