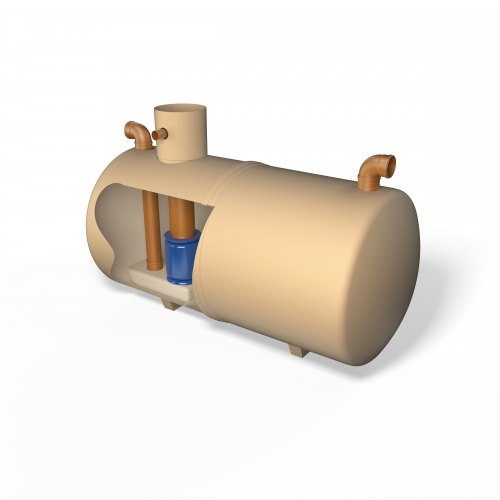

W1-100 Klargester Washdown Separator

Product Description

W1-100 WASHDOWN SEPARATORS

The Klargester W1-100 Washdown Separator can be used in areas such as car wash and other cleaning facilities that discharge directly into a foul drain, which feeds into a treatment facility. Such wash down facilities must not be allowed to discharge directly into surface water but must be directed to a foul connection leading to a municipal tretment works as they utilise emulsifiers, soaps and detergents to dissolve and disperse oils.

Uses:

Car Wash
Tool hire depots
Truck cleansing
Construction compounds cleansing points

Features:

Light and easy to install
Inclusive of silt storage volume
Fitted inlet/outlet connectors
Vent points within necks
Extension access shafts for deep inverts
Maintenance from ground level

Specifications:

Suitable for 20-30 cars or 16-20 lorries per day
Capacity: 10000 litres
Maximum rec silt: 5000
Maximum Flow Rate: 27 litres per second
Access shaft diameter: 600mm
Base to inlet invert: 2005mm
Base to outlet invert: 1955mm
Standard fall across unit: 50mm
Minimum inlet invert: 500mm
Standard pipework diameter: 160mm

washdown-spec

DO YOU REQUIRE COMMISSIONING?

To ensure your system operates to maximum efficiency, we recommend tried and tested commissioning by Klargesters own trained engineers.
Our unrivalled knowledge means that we are best placed to carry out bespoke assessments to get your system up and running. The commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.

WHAT'S INCLUDED IN THE COMMISSIONING? CLICK HERE FOR MORE INFORMATION

*DELIVERY TERMS

All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.

HIAB off-loading is available at extra cost, if requested.

It is the responsibility of the customer to inform us, if off-loading equipment is required.

Service and Maintenance:

It is essential that you ensure your separator is properly serviced and maintained to remain compliant with EN 858-1 standard and prevent pollution due to blockages. Kingspan's service and maintenance packages have been developed using their expert knowledge of their separators to help keep your separator operating at optimal efficiency, therefore remaining non-polluting and compliant. Visit Kingspan Service or contact the Kingspan Team on 0818 543 500 or for more information on the packages available.

Product Specification

Product Code: KLA
Material: GRP
Shape: Underground
Shipping: Customer Off Loading, Free Delivery
Volume: 10000ltr
Weight: 680.000kg
Dimensions: L:3915mm
Diameter: 2020mm

Do You Require Commissioning?

Offering comprehensive commissioning packages, to not only ensure your system is running optimally at all times (which in turn saves you money), it also maintains your warranty of your system.

It's an important step in the installation process and an essential part of planning and building regulation sign off. Commissioned by qualified service engineers, supplying a certification of commissioning for your records.

During the commissioning visit, our network of skilled engineers can install SmartServ Pro onto your system. SmartServ Pro has been developed to remotely monitor the performance of our system at the touch of a button. You can access the information anytime, anywhere on your phone or laptop.

On what products are the commissioning packages offered?

We can carry commissioning for the following products -

Domestic Sewage Treatment Plants
Commercial Sewage Treatment Plants
Fuel/Oil Separators
Pump Chambers (Single Pump)
Rainwater Harvesting Units

If I select commissioning, what's involved?

We offer 2 types of commissioning depending on what unit you require it for. We can offer the standard commissioning or a smart commissioning.

What's the difference between the Standard and Smart Commissioning?

Standard

A basic package with the following benefits:

Peace of mind - rest assured that all mechanical and electrical components have been installed correctly and tested to make sure they are working as intended.
Trouble-free operation of your system from the start.
You will be issued with a full commissioning certificate for your system.
Available on our full range of wastewater and surface water products.

Smart

Offers all the benefits of the standard commissioning plus the following:

Under EN 858-2, (specific to separators only) it is recommended that you install a local or remote alarm to your separator in order to prevent pollution incidents - our package includes SmartServ Pro remote monitoring with early fault detection.
Comprehensive asset tracking, removing local reliance to monitor operation status.
Less risk of business downtime - with our SmartServ Pro solution, you can proactively tackle operational problems before they impact your business.
Instant text alerts to site contacts (up to 14) and Kingspan Service Centre simultaneously.

Click here to find out more information regarding what's carried out for a commissioning on each unit.
