GreaseShield GS1850-PF

Kingspan Greaseshield GS1850-PF

GreaseShield GS1850-PF

Product Ref: 0022381

Customer Off Loading

available Available

updown
€1,794.00 ex VAT
(€2,206.62 inc VAT)
Product Description

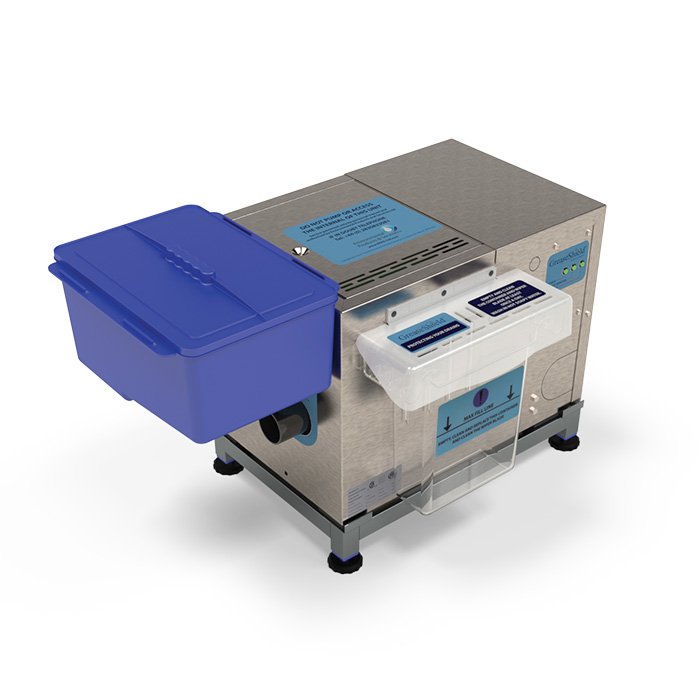

Grease Shield GS1850-PF

The GreaseShield is a mechanical grease trap that uses waste thermal energy to remove emulsified FOGs, particularly saturated animal fats before they solidify. GreaseShield removes and dewaters organic solid matter by a pre filter and optional internal automatic solids removal / transfer system.

Because biological degradation of organic matter in water is substantially prevented, BOD, COD, FOG and SS loadings are significantly reduced and it also prevents anaerobic foul smelling conditions caused by biological activity.



Application

  • Pot Wash & Pre Rinse sinks
  • Hood Dishwashers
  • Double bowl sinks
  • Conventional ovens



Features

  • Automatic FOG & solids removal
  • Self cleaning
  • Magnetic baffle for biomediation
  • PLC controlled
  • Non restricted Vortex control device
  • Reverse flow configuration
  • Space saver running trap & sampling point
  • Globally certified award-winning technology
  • The only green certified grease trap in the world



GS1850-PF Specifications

 Plumbing Connections
 Pre-filer Inlet  40mm
 Inlet  40mm
 Invert Inlet  32mm
 Outlet  50mm
 Decant Outlet  18mm
 Hot Water Solenoid  22mm
 Electrical Ratings
 Voltage  230v
 Frequency  50HZ
 Current  0.49A
 Standard Operational Times
 Days of Operation  7 Days a Week
 Hours of Operation  07.00 - 2.30
 Average Power Consumption  15.8W



Flow Rates & Certification

  • Pro-Active  Flow Rare - 1.85L/sec
  • ASME Certification
  • PDI Certification
  • CSA Certification
  • EN 1825 Certification

Delivery Terms

Kingspan Tanks - Tail-lift deliveries are available for most tanks up to 2,000 Litre capacities for kerbside delivery.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Klargester Tanks  - All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.
HIAB off-loading is available at extra cost, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Harlequin Tanks  - Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities for kerbside delivery subject to availability.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

tanks.ie undertakes to attempt to fulfill all orders within a maximum of 7 working days of order acceptance, unless advised otherwise. In the event that any order is delayed, tanks.ie will not be responsible for any consequential loss or damage that this delay may cause.

Smaller items (including most accessories and consumables) will normally be despatched by courier.
Larger items (including all storage tanks) will normally be delivered by carrier.

Please note that for all items delivered by carrier, normally a truck + 40ft trailer, it is the customer's responsibility to ensure adequate vehicular access and to provide suitable offloading equipment, where required. Please notify us, if this might pose a problem and we will endeavour to facilitate your request.

Returns Information

ORDER CANCELLATION

In accordance with Irish and European Union consumer laws, you have seven days after receipt of order to cancel the order in its entirety or any part thereof, providing the goods are in a re-saleable condition. Should you wish to cancel any order, you must first contact [email protected] for a ‘Returns Authorisation Number’.

Please call 051 351325 or e-mail [email protected]


After the Returns Authorisation Number has been issued, we will make arrangements with you for the goods to be returned. If you wish tanks.ie to arrange the collection of the goods, please note that a carriage and administration charge will apply, which will not exceed 35% of the gross value of the goods.

Upon return of the cancelled goods to tanks.ie and verification that they are in a re-saleable condition, we will refund the value of the goods, less any collection and administration charges, within 28 days.

DEFECTIVE PRODUCTS

If you believe that products you have purchased from tanks.ie are defective, please report this immediately to tanks.ie by e-mail [email protected] or call 051 351325.

If they are within the manufacturer’s guarantee period, we will arrange with the manufacturer to replace or repair the goods at the manufacturer’s discretion and consistent with their guarantee.
Where it is necessary to inspect the goods on site and an inspection proves the fault is neither the fault of tanks.ie, nor the product manufacturer, an inspection charge will apply, which will be advised by the manufacturer prior to site inspection.

Please note that where guarantees are available in excess of those required by law, these are provided at the discretion of the product manufacturer and not tanks.ie. Additionally, tanks.ie will not be liable for any claims for consequential damage or loss.

Product Specification

  • Product Code: KLA
  • Shipping: Customer Off Loading

Attachments

pdfGreaseshield GS1850PF
