EFFLUENT FILTER PL122

PL122 EFFLUENT FILTER

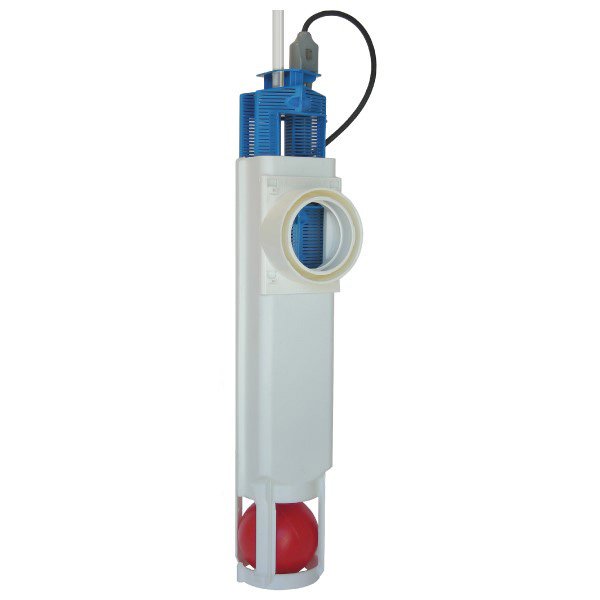

The PL122 effluent filter was the original filter. It was the first filter on the market with an automatic shut-off ball installed with every filter. When the filter is removed for regular servicing, the ball will float up and prevent any solids from leaving the tank. Our patented design cannot be duplicated. The PL-122 effluent filter is designed for residential waste flows up to 5,700 litres per day. It has 122 linear feet of 1/16' filter slots. It is designed to fit a septic tank outlet pipe. The PL-122 is unique in design with an automatic shut off ball installed with every filter. When the filter element is removed for servicing the ball will float up and prevent any solids from leaving the tank. The ball also acts as a gas deflector to ensure any gas bubbles are deflected away from the filter. This filter can be supplied with or without the handle.

Features:-

• Offers 122 linear feet of 1/16' filter slots, which significantly extends time between cleaning
• Has a flow control ball that shuts off the flow of effluent when the filter is removed for cleaning
• Has its own gas deflector ball which deflects solids away
• Installs easily in new tanks, or retrofits in existing systems
• Comes complete with its own housing. No gluing of tees or pipe, no extra parts to buy
• Has a modular design, allowing for increased filtration
• Alarm accessibility
• Accepts PVC extension handle
• Comes with either pipe adapter or filter seal adapter

• Product Code: POL
• Shipping: Free Delivery
