Piusi K24 Turbine Digital Flow Meter

Product Description

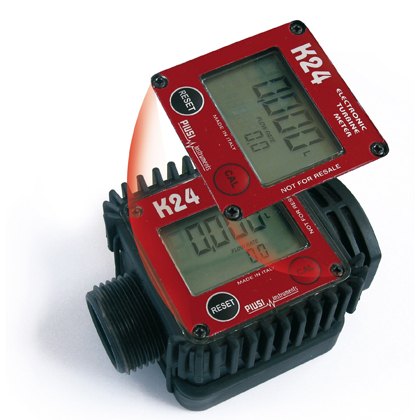

PIUSI K24 TURBINE DIGITAL FLOW METER

The Piusi K24 digital fuel flow meter is a turbine flow meter, designed for measuring the transfer of low viscosity fluids. This Piusi diesel flow meter is easy to install either inline or by the delivery nozzle, and are equipped with a display which can be rotated in 4 different positions, allowing easy reading. The K24 electronic fuel flow meter is known for its accuracy and reliability.. Easy to install, in line or at the end of a delivery pipe, equipped with adjusting screen for easy reading.

The ideal instrument for controlling fluid dispensing. Sturdy casing and a sealed electronic card make it suitable for use in practically all conditions. Reinforced polyamide body. Polypropylene turbine.

Flow meters are essential for measuring quantities dispensed, and professionals need precise, reliable, robust instruments. Piusi's response to these requirements is a comprehensive range of digital and mechanical flow meters, some of which stand out for their light weight and precision, and others for their strength and reliability. Piusi flow meters can be used for the widest imaginable range of applications, including for diesel, oil and foodstuffs.

Our range of flow meters also includes models designed for the most demanding situations: for example, we have high flow-rate flow meters and pulser flow meters which read the flow rate of the liquid and display the results on remote screens. This solution is particularly useful on trucks and earthmoving machinery, for example.

Specification:-

For diesel
Flowrate 7-120 l/min
10 bar pressure
M 1' BSP - F 1' BSP
Accuracy +/- 1%
Repeatability 0.2%
Bursting pressure 40 bar
Fluid viscosity: 2-5.35 cSt

Product Specification

Product Code: ROT
Colour: Black
Shipping: Free Delivery
Weight: 1.100kg
Dimensions: L:115mm W:160mm H:135mm
