FLYVAR 1000L COMPACT BOOSTER PUMP & TANK

FLYVAR 1000L COMPACT BOOSTER PUMP & TANK

Product Ref: FV40/10S/1000

Water GRP Non-returnable Yes Rectangular Customer Off Loading, Free Delivery Customer Off Loading, Free Delivery WRAS Approved

available Available

Choose Single or Twin Pump:
Choose Pump Option:

updown
€4,181.45 from €3,750.73 ex VAT
(€4,613.40 inc VAT)
Product Description

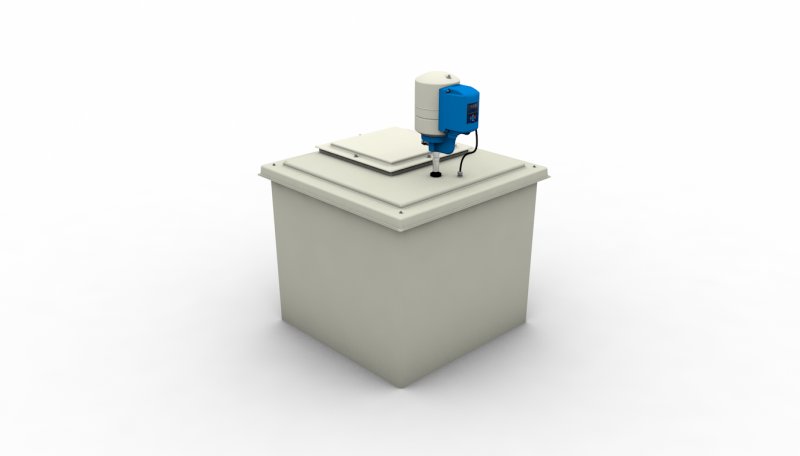

1000L FLYVAR COMPACT BOOSTER PUMP & TANK

The 1000L Flyvar Compact Booster Pump & Tank is specifically designed to boost water pressure and maximise water storage all contained in a space saving tank. The Flyvar Compact has a WRAS approved submersible pump in a GRP tank. The variable speed pump uses low energy and is whisper quiet. The Flyvar Compast Booster Set comes with a single and twin pump option and is available with duty assist and duty standby. This booster tank and pump is suitable for residential and commercial projects due to it's high performance and simple installation.

Each pump comes complete with an independent inverter fixed to the vessel with Bluetooth connectivity to pair the inverters for duty assistv functionality without the need for interconnecting wiring. This enables easy installation and testing. With this system you can also pair multiple FlyVar Compacts together which will allow for even more flow when space for situating the system is at even more of a premium.

Features:

  • GRP water storage tank
  • Compact design with small footprint
  • Simple 'plug and play' installation
  • Fast to install, little to connect
  • Easy maintenance with split lid
  • Comes with standby and duty assist
  • Comes with power protection device
  • Ultra quiet variable speed stainless steel submersible pump
  • WRAS approves pump and tank
  • Digital status display for alerts and reports
  • High flow inlet valve
  • 25mm tank insulation
  • Common alarm volt free contact
  • Low water level pump protection device

Specification:

Flow Range Single Pump 1.3-2 litres/sec
Flow Range Twin Pump 2.6-4 litres/sec
Pressure Range 2.5 - 8 bar
Max System Pressure 10 bar
Max System Temperature 23°C
Inlet Size 28mm
Outlet Size 1 1/4"
Power Supply 230/1/50
Control Type Wireless Bluetooth Technology
Tank 25mm Insulated
Pump(s) AISI 304 Stainless Steel



Single Pump Specification

Model Number  Mid Curve Flow  Mid Curve Pressure  kW Rating  Running Current (amp)  Supply Voltage  Inlet  Outlet  Overflow Size Dry Weight
FV40/10S 40 l/min 4.5 Bar 0.75 3.8 1ph 230v 50hz 3/4"  1" 40mm 74kg
FV40/15S 40 l/min 6.5 Bar 1.1 5.2 1ph 230v 50hz 3/4" 1" 40mm 76kg
FV80/15S 60 l/min 4.5 Bar 1.1 5.4 1ph 230v 50hz 3/4" 1" 40mm 78kg
FV80/20S 60 l/min 5.8 Bar 1.5 6.1 1ph 230v 50hz 3/4" 1" 40mm 80kg



Twin Pump Specification

Model Number  Mid Curve Flow  Mid Curve Pressure  kW Rating  Running Current (amp)  Supply Voltage  Inlet  Outlet  Overflow Size Dry Weight
FV40/10T 80 l/min 4.5 Bar 2x0.75 2x3.8 1ph 230v 50hz 3/4"  1 1/4" 40mm 94kg
FV40/15T 80 l/min 6.5 Bar 2x1.1 2x5.2 1ph 230v 50hz 3/4" 1 1/4" 40mm 96kg
FV80/15T 120 l/min 4.5 Bar 2x1.1 2x5.4 1ph 230v 50hz 3/4" 1 1/4" 40mm 98kg
FV80/20T 120 l/min 5.8 Bar 2x1.5 2x6.1 1ph 230v 50hz 3/4" 1 1/4" 40mm 100kg



Each pump comes complete with an independent inverter, fixed to the vessel with Bluetooth connectivity to pair the inverts for duty assist functionality. No need for interconnecting wiring, making it easy for installation and testing. This versatile booster set can also pair with multiple FlyVar compacts allowing for even more flow when space for situating the system is at even more of a premium.



Delivery

All our Compact booster sets are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.



Delivery Terms

Kingspan Tanks - Tail-lift deliveries are available for most tanks up to 2,000 Litre capacities for kerbside delivery.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Klargester Tanks  - All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.
HIAB off-loading is available at extra cost, if requested.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

Harlequin Tanks  - Tail-lift deliveries are available for most tanks up to 2,500 Litre capacities for kerbside delivery subject to availability.
It is the responsibility of the customer to inform us, if off-loading equipment is required.

tanks.ie undertakes to attempt to fulfill all orders within a maximum of 7 working days of order acceptance, unless advised otherwise. In the event that any order is delayed, tanks.ie will not be responsible for any consequential loss or damage that this delay may cause.

Smaller items (including most accessories and consumables) will normally be despatched by courier.
Larger items (including all storage tanks) will normally be delivered by carrier.

Please note that for all items delivered by carrier, normally a truck + 40ft trailer, it is the customer's responsibility to ensure adequate vehicular access and to provide suitable offloading equipment, where required. Please notify us, if this might pose a problem and we will endeavour to facilitate your request.

Returns Information

ORDER CANCELLATION

In accordance with Irish and European Union consumer laws, you have seven days after receipt of order to cancel the order in its entirety or any part thereof, providing the goods are in a re-saleable condition. Should you wish to cancel any order, you must first contact [email protected] for a ‘Returns Authorisation Number’.

Please call 051 351325 or e-mail [email protected]


After the Returns Authorisation Number has been issued, we will make arrangements with you for the goods to be returned. If you wish tanks.ie to arrange the collection of the goods, please note that a carriage and administration charge will apply, which will not exceed 35% of the gross value of the goods.

Upon return of the cancelled goods to tanks.ie and verification that they are in a re-saleable condition, we will refund the value of the goods, less any collection and administration charges, within 28 days.

DEFECTIVE PRODUCTS

If you believe that products you have purchased from tanks.ie are defective, please report this immediately to tanks.ie by e-mail [email protected] or call 051 351325.

If they are within the manufacturer’s guarantee period, we will arrange with the manufacturer to replace or repair the goods at the manufacturer’s discretion and consistent with their guarantee.
Where it is necessary to inspect the goods on site and an inspection proves the fault is neither the fault of tanks.ie, nor the product manufacturer, an inspection charge will apply, which will be advised by the manufacturer prior to site inspection.

Please note that where guarantees are available in excess of those required by law, these are provided at the discretion of the product manufacturer and not tanks.ie. Additionally, tanks.ie will not be liable for any claims for consequential damage or loss.

Product Specification

  • Product Code: DPT
  • Fuel Type: Water
  • Material: GRP
  • Non-returnable: Non-returnable
  • Potable: Yes
  • Shape: Rectangular
  • Shipping: Customer Off Loading, Free Delivery
  • WRAS Approved: WRAS Approved
  • Volume: 1000ltr
  • Weight: 100.000kg, 74.000kg, 76.000kg, 78.000kg, 80.000kg, 94.000kg, 96.000kg, 98.000kg
  • Dimensions: D:1180mm W:1180mm H:1606mm
