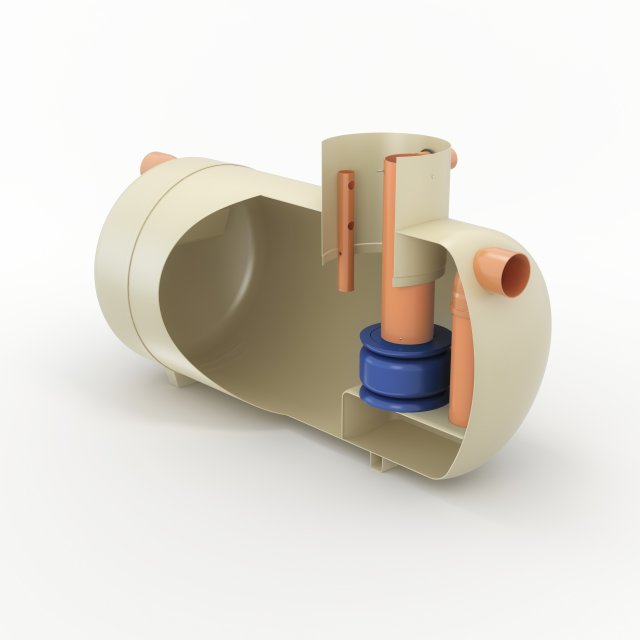

FULL RETENTION SEPARATOR NSFA15

FULL RETENTION SEPARATOR NSFA15

Our full retention separators or petrol interceptors can be used in car parks, roadways, fuel distribution depots, vehicle workshops and forecourts. Full retention separators treat the full flow that can be delivered by the drainage system. This is normally equivalent to the flow generated by a rainfall intensity of 65mm/hr.

Each full retention separator design includes the necessary volume requirements for:

• Oil separation capacity
• Silt storage capacity
• Automatic closure device
• Oil storage volume
• Coalescer (Class 1 units only)
• Full alarm range available

Features and benefits

• Designed for easy installation, saving you time and money
• Certified to EN858 - 1 for complete peace of mind
• Class 1 and Class 11 design
• Inclusive of silt storage volume
• Extension access shafts for deep inverts
• Oil alarm probe tube available (required by EN858-1)
• Fitted inlet/outlet connections
• Vent points within necks
• Maintenance from ground level
• GRP Chamber construction - light, high strength and durability
• CE-marked in line with the CPR 2013

Specification

• Flowrate 15 l/s
• Drainage area - 835m2
• Storage Capacity (litres) - Silt 1500l / Oil 150l
• Base to invert level - 1050mm
• Base to oultet level - 1000mm
• Min. Invert Inlet - 1000mm
• Standard pipework dia - 200mm

*DELIVERY TERMS

All tanks are delivered on 45ft Flat-bed Articulated Trailers, so off-loading equipment on site is necessary.

HIAB off-loading is available at extra cost, if requested.

It is the responsibility of the customer to inform us, if off-loading equipment is required.

DO YOU REQUIRE COMMISSIONING?

To ensure your system operates to maximum efficiency, we recommend tried and tested commissioning by Klargesters own trained engineers.
Our unrivalled knowledge means that we are best placed to carry out bespoke assessments to get your system up and running. The commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.

WHAT'S INCLUDED IN THE COMMISSIONING? CLICK HERE FOR MORE INFORMATION

Service and Maintenance:

It is essential that you ensure your separator is properly serviced and maintained to remain compliant with EN 858-1 standard and prevent pollution due to blockages. Kingspan's service and maintenance packages have been developed using their expert knowledge of their separators to help keep your separator operating at optimal efficiency, therefore remaining non-polluting and compliant. Visit Kingspan Service or contact the Kingspan Team on 0818 543 500 or for more information on the packages available.

• Product Code: KLA
• Material: GRP
• Shape: Underground
• Shipping: Customer Off Loading, Free Delivery
• Dimensions: L:3910mm
• Diameter: 1225mm

Offering comprehensive commissioning packages, to not only ensure your system is running optimally at all times (which in turn saves you money), it also maintains your warranty of your system.

It's an important step in the installation process and an essential part of planning and building regulation sign off. Commissioned by qualified service engineers, supplying a certification of commissioning for your records.

During the commissioning visit, our network of skilled engineers can install SmartServ Pro onto your system. SmartServ Pro has been developed to remotely monitor the performance of our system at the touch of a button. You can access the information anytime, anywhere on your phone or laptop.

On what products are the commissioning packages offered?

We can carry commissioning for the following products -

• Domestic Sewage Treatment Plants
• Commercial Sewage Treatment Plants
• Fuel/Oil Separators
• Pump Chambers (Single Pump)
• Rainwater Harvesting Units

If I select commissioning, what's involved?

We offer 2 types of commissioning depending on what unit you require it for. We can offer the standard commissioning or a smart commissioning.

What's the difference between the Standard and Smart Commissioning?

Standard

A basic package with the following benefits:

• Peace of mind - rest assured that all mechanical and electrical components have been installed correctly and tested to make sure they are working as intended.
• Trouble-free operation of your system from the start.
• You will be issued with a full commissioning certificate for your system.
• Available on our full range of wastewater and surface water products.

Smart

Offers all the benefits of the standard commissioning plus the following:

• Under EN 858-2, (specific to separators only) it is recommended that you install a local or remote alarm to your separator in order to prevent pollution incidents - our package includes SmartServ Pro remote monitoring with early fault detection.
• Comprehensive asset tracking, removing local reliance to monitor operation status.
• Less risk of business downtime - with our SmartServ Pro solution, you can proactively tackle operational problems before they impact your business.
• Instant text alerts to site contacts (up to 14) and Kingspan Service Centre simultaneously.

Click here to find out more information regarding what's carried out for a commissioning on each unit.
