KLARGESTER AQUAFLOW - 38,000 - 79,000 litre Horizontal Flow Control Solutions

3 Year GRP Free Delivery

€POA
Request a quote

Product Description

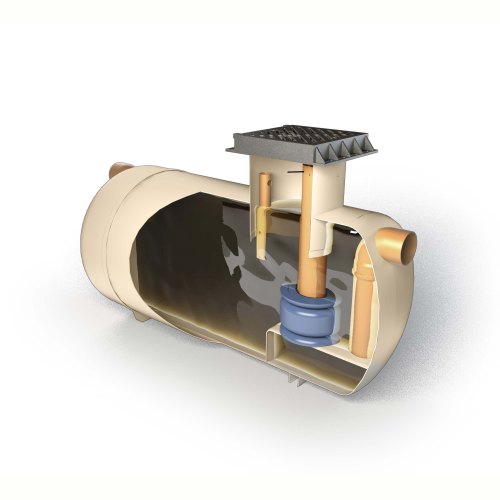

Klargester AquaFlow Horizontal Flow Control Chamber Solution from 38,000 - 79,000 Litres

Klargester AquaFlow GRP Flow Control chambers, control the runoff rate entering a receiving watercourse/network.

Limiting flow rates help avoid flooding and damage to natural habitats downstream and receiving watercourse. We offer overflow or surface operated bypass options, with full technical support available for your project.

The Klargester AquaFlow GRP Flow Control chamber is offered in a variety of different chamber model sizes.



Why choose a Klargester AquaFlow GRP Flow Control Chamber?

  • Full range of vertical and horizontal solutions available

  • Factory fitted solutions

  • Reduced health and safety risks on site

  • Easy to install

  • Adoptable product

  • Overflow pipe as standard

  • Gate valve available on request

  • Flow control pre-installed

  • Plug and Play system

  • Large chamber to facilitate ladder access in emergency situations

  • Supplied with manhole cover as standard

  • Standalone product, compatible with crate systems

  • Full technical and servicing support available

  • 3 year warranty when serviced by Kingspan or a Kingspan accredited service partner*



Technical Data: Models SF38; SF42; SF50; SF59; SF67; SF71; SF79;

Tank Dia (m)

Model

Volume (litres)

Case Dia (mm)

Case Depth (mm)

Length (mm)

Inlet Invert (mm)

Inlet Dia (mm)

Outlet Invert (mm)

Outlet Dia (mm)

Outlet to Base (mm)









2.6

SF38

38000

2820

3300

8150

3100

160

3130

160

170

SF42

42000

2820

3300

8917

3100

160

3130

160

170

SF50

50000

2820

3300

10453

3100

160

3130

160

170

SF59

59000

2820

3300

11994

3100

160

3130

160

170

SF67

67000

3820

3300

13526

3100

160

3130

160

170

SF71

71000

2820

3300

14295

3100

160

3130

160

170

SF79

79000

2820

3300

15894

3100

160

3130

160

170



For details of our full range of chamber sizes, please get in touch directly to speak with our technical experts.
